music-data

The music-data group contains the basic musical data that is either associated with a part or a measure, depending on whether the partwise or timewise hierarchy is used.

Element Group Information

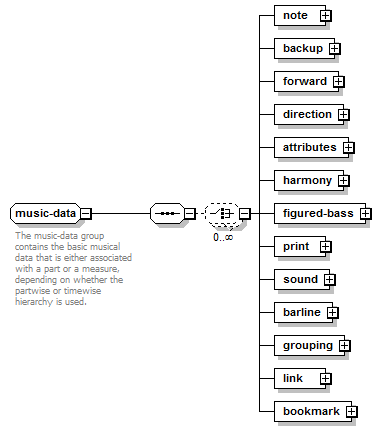

Model

Children: attributes, backup, barline, bookmark, direction, figured-bass, forward, grouping, harmony, link, note, print, sound

Used By

Elements

score-partwise/part/measure, score-timewise/measure/part

Source

<xs:group name="music-data">
  <xs:annotation>
    <xs:documentation>The music-data group contains the basic musical data that is either associated with a part or a measure, depending on whether the partwise or timewise hierarchy is used.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element name="note" type="note"/>
      <xs:element name="backup" type="backup"/>
      <xs:element name="forward" type="forward"/>
      <xs:element name="direction" type="direction"/>
      <xs:element name="attributes" type="attributes"/>
      <xs:element name="harmony" type="harmony"/>
      <xs:element name="figured-bass" type="figured-bass"/>
      <xs:element name="print" type="print"/>
      <xs:element name="sound" type="sound"/>
      <xs:element name="barline" type="barline"/>
      <xs:element name="grouping" type="grouping"/>
      <xs:element name="link" type="link"/>
      <xs:element name="bookmark" type="bookmark"/>
    </xs:choice>
  </xs:sequence>
</xs:group>
