note

Element Information

Model

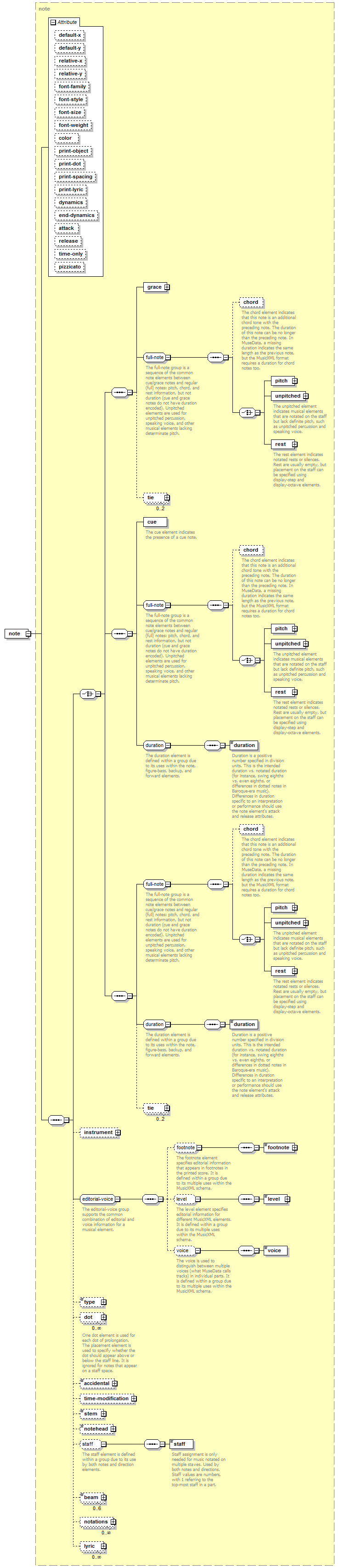

((grace , chord{0,1} , (pitch | unpitched | rest) , tie{0,2}) | (cue , chord{0,1} , (pitch | unpitched | rest) , duration) | (chord{0,1} , (pitch | unpitched | rest) , duration , tie{0,2})) , instrument{0,1} , footnote , level , voice , type{0,1} , dot* , accidental{0,1} , time-modification{0,1} , stem{0,1} , notehead{0,1} , staff , beam{0,6} , notations* , lyric*

Children: accidental, beam, chord, cue, dot, duration, footnote, grace, instrument, level, lyric, notations, notehead, pitch, rest, staff, stem, tie, time-modification, type, unpitched, voice

Attributes

QName	Type	Fixed	Default	Use	Inheritable	Annotation
attack	divisions			optional
color	color			optional
default-x	tenths			optional
default-y	tenths			optional
dynamics	non-negative-decimal			optional
end-dynamics	non-negative-decimal			optional
font-family	comma-separated-text			optional
font-size	font-size			optional
font-style	font-style			optional
font-weight	font-weight			optional
pizzicato	yes-no			optional
print-dot	yes-no			optional
print-lyric	yes-no			optional
print-object	yes-no			optional
print-spacing	yes-no			optional
relative-x	tenths			optional
relative-y	tenths			optional
release	divisions			optional
time-only	xs:token			optional

Source

<xs:element name="note" type="note"/>

Sample
