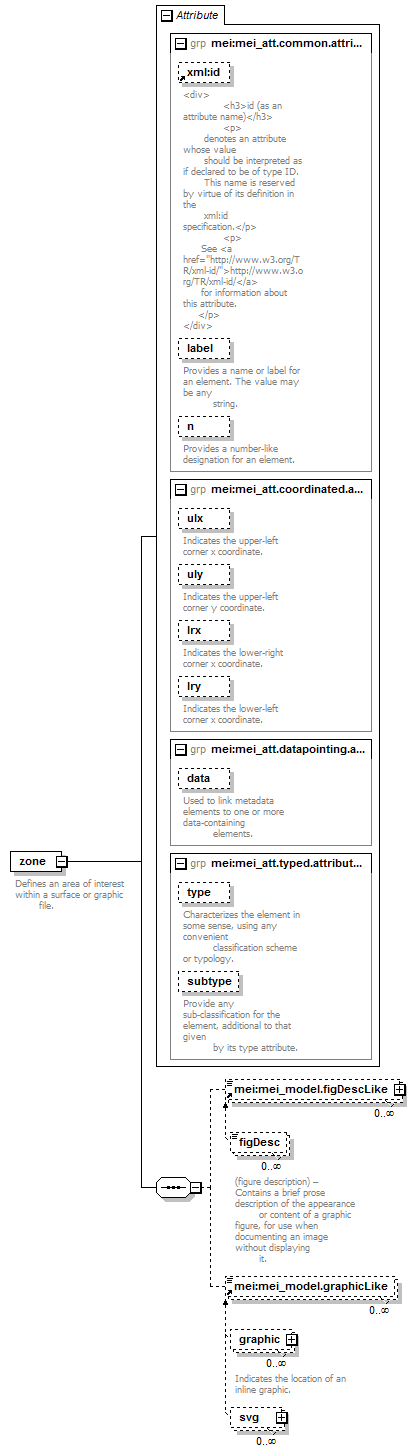

mei:zone

Defines an area of interest within a surface or graphic
file.

Element Information

Model

mei:mei_model.figDescLike* , mei:mei_model.graphicLike*
Children: mei:mei_model.figDescLike, mei:mei_model.graphicLike

Attributes

QName Type Fixed Default Use Inheritable Annotation
data restriction of list of mei:mei_data.URI optional
Used to link metadata elements to one or more data-containing
elements.
label xs:string optional
Provides a name or label for an element. The value may be any
string.
lrx xs:nonNegativeInteger optional
Indicates the lower-right corner x coordinate.
lry xs:nonNegativeInteger optional
Indicates the lower-left corner x coordinate.
n optional
Provides a number-like designation for an element.
subtype xs:NMTOKEN optional
Provide any sub-classification for the element, additional to that given
by its type attribute.
type xs:NMTOKEN optional
Characterizes the element in some sense, using any convenient
classification scheme or typology.
ulx xs:nonNegativeInteger optional
Indicates the upper-left corner x coordinate.
uly xs:nonNegativeInteger optional
Indicates the upper-left corner y coordinate.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.

Used By

Elements mei:graphic, mei:surface

Source

<xs:element name="zone">
  <xs:annotation>
    <xs:documentation>Defines an area of interest within a surface or graphic file.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mei:mei_model.figDescLike"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mei:mei_model.graphicLike"/>
    </xs:sequence>
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.coordinated.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.datapointing.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.typed.attributes"/>
  </xs:complexType>
</xs:element>

Sample
