mei:mei_model.mdivLike

Element Information

Model

(mei:mei_model.scoreLike{0,1} , mei:mei_model.partsLike{0,1}) | mei:mei_model.mdivLike*
Children: mei:mei_model.mdivLike, mei:mei_model.partsLike, mei:mei_model.scoreLike

Attributes

QName Type Fixed Default Use Inheritable Annotation
decls restriction of list of mei:mei_data.URI optional
Identifies one or more metadata elements within the header, which are
understood to apply to the element bearing this attribute and its
content.
facs restriction of list of mei:mei_data.URI optional
Permits the current element to reference a facsimile surface or image zone
which corresponds to it.
label xs:string optional
Provides a name or label for an element. The value may be any
string.
n optional
Provides a number-like designation for an element.
subtype xs:NMTOKEN optional
Provide any sub-classification for the element, additional to that given
by its type attribute.
type xs:NMTOKEN optional
Characterizes the element in some sense, using any convenient
classification scheme or typology.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.

Used By

Elements mei:body, mei:mei_model.mdivLike

Source

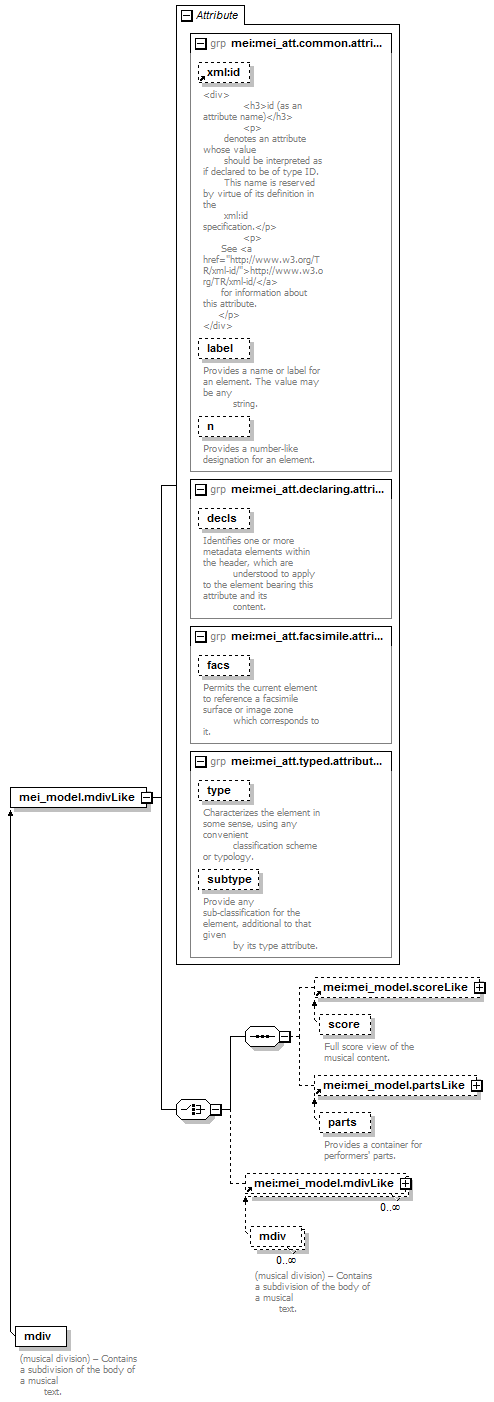

<xs:element name="mei_model.mdivLike" abstract="true">
  <xs:complexType>
    <xs:choice>
      <xs:sequence>
        <xs:element minOccurs="0" ref="mei:mei_model.scoreLike"/>
        <xs:element minOccurs="0" ref="mei:mei_model.partsLike"/>
      </xs:sequence>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mei:mei_model.mdivLike"/>
    </xs:choice>
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.declaring.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.facsimile.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.typed.attributes"/>
  </xs:complexType>
</xs:element>

Sample
