db:col

Element Information

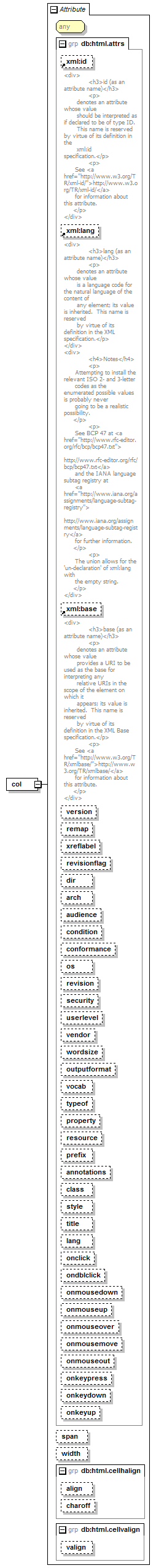

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
align restriction of xs:token optional
annotations optional
arch optional
audience optional
charoff optional
class optional
condition optional
conformance optional
dir restriction of xs:token optional
lang optional
onclick optional
ondblclick optional
onkeydown optional
onkeypress optional
onkeyup optional
onmousedown optional
onmousemove optional
onmouseout optional
onmouseover optional
onmouseup optional
os optional
outputformat optional
prefix optional
property optional
remap optional
resource optional
revision optional
revisionflag restriction of xs:token optional
security optional
span xs:nonNegativeInteger optional
style optional
title optional
typeof optional
userlevel optional
valign restriction of xs:token optional
vendor optional
version optional
vocab xs:anyURI optional
width optional
wordsize optional
xml:base optional
xml:id xs:ID optional
xml:lang optional
xreflabel optional

Used By

Elements db:colgroup, db:informaltable, db:table

Source

<xs:element name="col">
  <xs:complexType>
    <xs:complexContent>
      <xs:restriction base="xs:anyType">
        <xs:attributeGroup ref="db:html.attrs"/>
        <xs:attribute name="span" type="xs:nonNegativeInteger"/>
        <xs:attribute name="width"/>
        <xs:attributeGroup ref="db:html.cellhalign"/>
        <xs:attributeGroup ref="db:html.cellvalign"/>
      </xs:restriction>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

Sample
