docbook:keycombo

Element Information

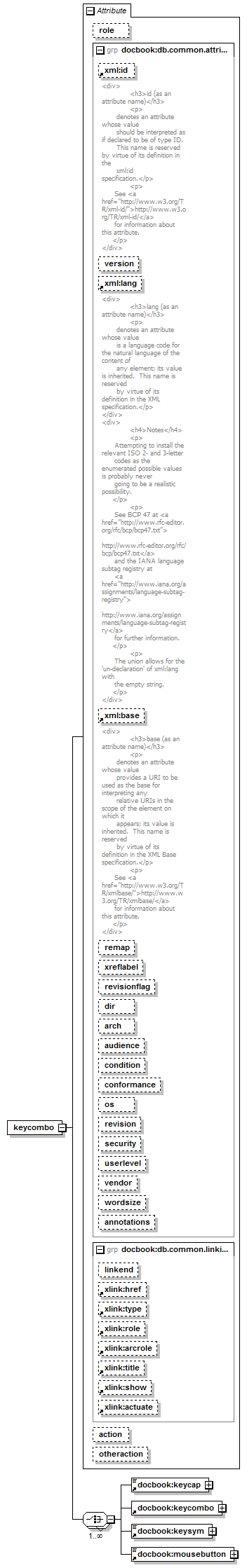

Model

docbook:keycap | docbook:keycombo | docbook:keysym | docbook:mousebutton
Children: docbook:keycap, docbook:keycombo, docbook:keysym, docbook:mousebutton

Attributes

QName Type Fixed Default Use Inheritable Annotation
action restriction of xs:token optional
annotations optional
arch optional
audience optional
condition optional
conformance optional
dir restriction of xs:token optional
linkend xs:IDREF optional
os optional
otheraction optional
remap optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
userlevel optional
vendor optional
version optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base xs:anyURI optional
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
xml:id xs:ID optional
See http://www.w3.org/TR/xml-id/ for
information about this attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
xreflabel optional

Used By

Elements docbook:bridgehead, docbook:citation, docbook:citetitle, docbook:classsynopsisinfo, docbook:emphasis, docbook:entry, docbook:firstterm, docbook:funcsynopsisinfo, docbook:glosssee, docbook:glossseealso, docbook:glossterm, docbook:keycombo, docbook:link, docbook:literallayout, docbook:member, docbook:olink, docbook:orgdiv, docbook:para, docbook:phrase, docbook:primary, docbook:primaryie, docbook:programlisting, docbook:quote, docbook:refdescriptor, docbook:refentrytitle, docbook:refname, docbook:refpurpose, docbook:screen, docbook:secondary, docbook:secondaryie, docbook:see, docbook:seealso, docbook:seealsoie, docbook:seeie, docbook:seg, docbook:segtitle, docbook:shortcut, docbook:simpara, docbook:subtitle, docbook:synopsis, docbook:td, docbook:term, docbook:termdef, docbook:tertiary, docbook:tertiaryie, docbook:th, docbook:title, docbook:titleabbrev, docbook:tocentry, docbook:userinput

Source

<xs:element name="keycombo">
  <xs:complexType>
    <xs:choice maxOccurs="unbounded">
      <xs:element ref="docbook:keycap"/>
      <xs:element ref="docbook:keycombo"/>
      <xs:element ref="docbook:keysym"/>
      <xs:element ref="docbook:mousebutton"/>
    </xs:choice>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="docbook:db.common.attributes"/>
    <xs:attributeGroup ref="docbook:db.common.linking.attributes"/>
    <xs:attribute name="action">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="click"/>
          <xs:enumeration value="double-click"/>
          <xs:enumeration value="press"/>
          <xs:enumeration value="seq"/>
          <xs:enumeration value="simul"/>
          <xs:enumeration value="other"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="otheraction"/>
  </xs:complexType>
</xs:element>

Sample
