geometry

There must be at least one geometry element.

Element Information

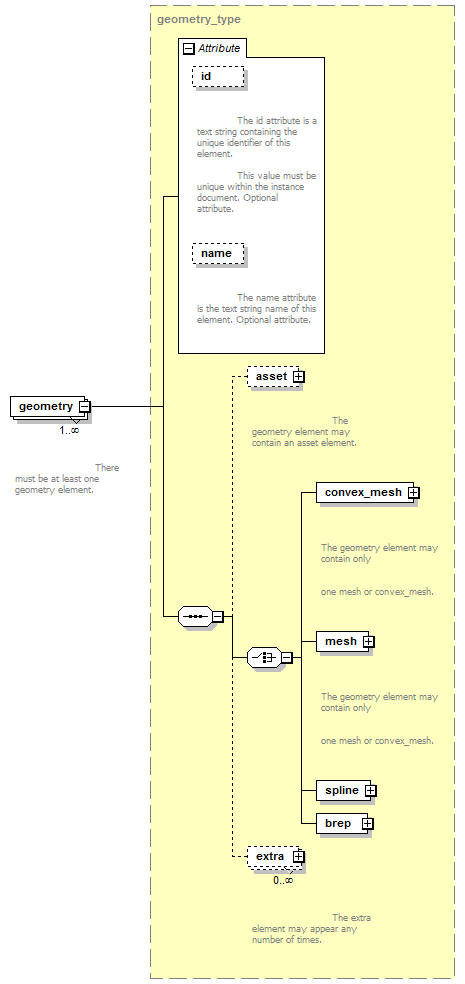

Model

asset{0,1} , (convex_mesh | mesh | spline | brep) , extra*
Children: asset, brep, convex_mesh, extra, mesh, spline

Attributes

QName Type Fixed Default Use Inheritable Annotation
id xs:ID optional
The id attribute is a text string containing the unique identifier of this element.
This value must be unique within the instance document. Optional attribute.
name xs:token optional
The name attribute is the text string name of this element. Optional attribute.

Source

<xs:element name="geometry" type="geometry_type" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>There must be at least one geometry element.</xs:documentation>
  </xs:annotation>
</xs:element>

Sample

< library_geometries xmlns = "http://www.collada.org/2008/03/COLLADASchema" >

< geometry id = "Model_E0_MESH_0_REF_1_lib" name = "Model_E0_MESH_0_REF_1" >

< mesh>

< source id = "Model_E0_MESH_0_REF_1_lib_positions" name = "position" >

< float_array id = "Model_E0_MESH_0_REF_1_lib_positions_array" count = "9" >

-50 -50 0 0 50 0 50 -50 0

</ float_array>

< technique_common>

< accessor count = "3" source = "#Model_E0_MESH_0_REF_1_lib_positions_array" stride = "3" >

< param name = "X" type = "float" />

< param name = "Y" type = "float" />

< param name = "Z" type = "float" />

</ accessor>

</ technique_common>

</ source>

< source id = "Model_E0_MESH_0_REF_1_lib_normals" name = "normal" >

< float_array id = "Model_E0_MESH_0_REF_1_lib_normals_array" count = "9" >

0 0 -1 0 0 -1 0 0 -1

</ float_array>
