mesh

The geometry element may contain only one mesh or convex_mesh.

Element Information

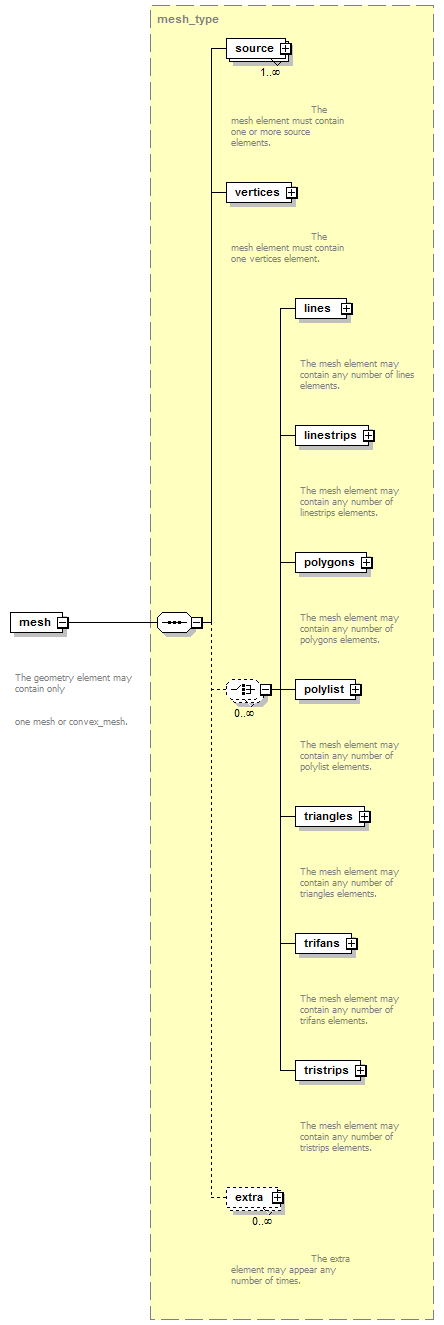

Model

Children: extra, lines, linestrips, polygons, polylist, source, triangles, trifans, tristrips, vertices

Source

<xs:element name="mesh" type="mesh_type">
  <xs:annotation>
    <xs:documentation>The geometry element may contain only one mesh or convex_mesh.</xs:documentation>
  </xs:annotation>
</xs:element>

Sample

< geometry xmlns = "http://www.collada.org/2008/03/COLLADASchema" id = "Model_E0_MESH_0_REF_1_lib" name = "Model_E0_MESH_0_REF_1" >

< mesh>

< source id = "Model_E0_MESH_0_REF_1_lib_positions" name = "position" >

< float_array id = "Model_E0_MESH_0_REF_1_lib_positions_array" count = "9" >

-50 -50 0 0 50 0 50 -50 0

</ float_array>

< technique_common>

< accessor count = "3" source = "#Model_E0_MESH_0_REF_1_lib_positions_array" stride = "3" >

< param name = "X" type = "float" />

< param name = "Y" type = "float" />

< param name = "Z" type = "float" />

</ accessor>

</ technique_common>

</ source>

< source id = "Model_E0_MESH_0_REF_1_lib_normals" name = "normal" >

< float_array id = "Model_E0_MESH_0_REF_1_lib_normals_array" count = "9" >

0 0 -1 0 0 -1 0 0 -1

</ float_array>

< technique_common>
