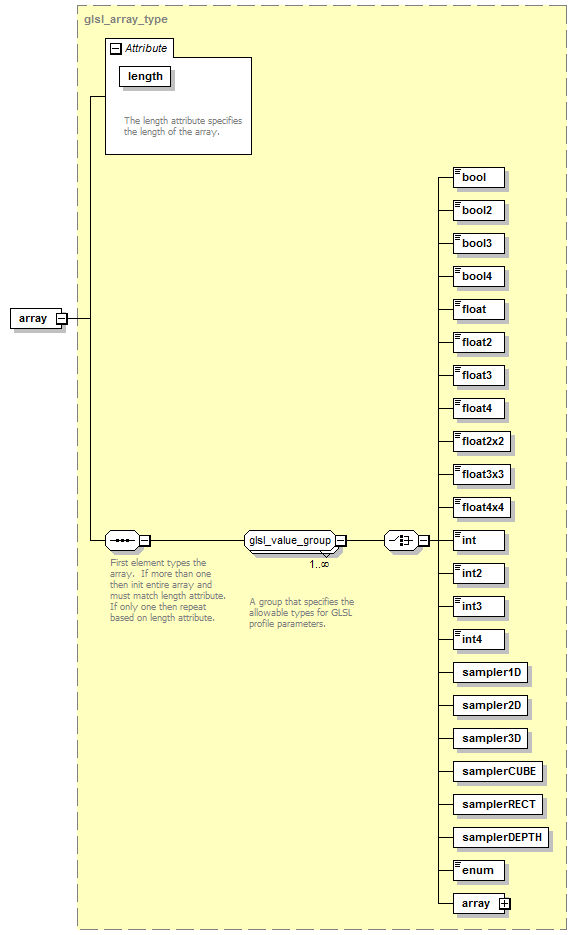

array

Element Information

Model

(bool | bool2 | bool3 | bool4 | float | float2 | float3 | float4 | float2x2 | float3x3 | float4x4 | int | int2 | int3 | int4 | sampler1D | sampler2D | sampler3D | samplerCUBE | samplerRECT | samplerDEPTH | enum | array)

Children: array, bool, bool2, bool3, bool4, enum, float, float2, float2x2, float3, float3x3, float4, float4x4, int, int2, int3, int4, sampler1D, sampler2D, sampler3D, samplerCUBE, samplerDEPTH, samplerRECT

Attributes

QName	Type	Fixed	Default	Use	Inheritable	Annotation
length	xs:positiveInteger			required		The length attribute specifies the length of the array.

Source

<xs:element name="array" type="glsl_array_type"/>

Sample
