vertices

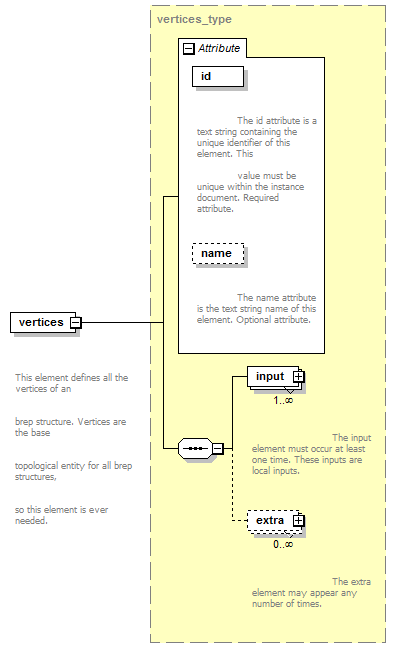

This element defines all the vertices of an brep structure. Vertices are the base topological entity for all brep structures, so this element is ever needed.

Element Information

Model

input+ , extra*

Children: extra, input

Attributes

QName

Type

Fixed

Default

Use

Inheritable

Annotation

xs:ID

required

The id attribute is a text string containing the unique identifier of this element. This
value must be unique within the instance document. Required attribute.

xs:token

optional

The name attribute is the text string name of this element. Optional attribute.

Source

<xs:element name="vertices" type="vertices_type">
  <xs:annotation>
    <xs:documentation>This element defines all the vertices of an brep structure. Vertices are the base topological entity for all brep structures, so this element is ever needed.</xs:documentation>
  </xs:annotation>
</xs:element>

Sample

< mesh xmlns = "http://www.collada.org/2008/03/COLLADASchema" >

[...]

< source id = "Model_E0_MESH_0_REF_1_lib_positions" name = "position" >

< float_array id = "Model_E0_MESH_0_REF_1_lib_positions_array" count = "9" >

-50 -50 0 0 50 0 50 -50 0

</ float_array>

< technique_common>

< accessor count = "3" source = "#Model_E0_MESH_0_REF_1_lib_positions_array" stride = "3" >

< param name = "X" type = "float" />

< param name = "Y" type = "float" />

< param name = "Z" type = "float" />

</ technique_common>

< source id = "Model_E0_MESH_0_REF_1_lib_normals" name = "normal" >

< float_array id = "Model_E0_MESH_0_REF_1_lib_normals_array" count = "9" >

0 0 -1 0 0 -1 0 0 -1

</ float_array>

< technique_common>

< accessor count = "3" source = "#Model_E0_MESH_0_REF_1_lib_normals_array" stride = "3" >

< param name = "X" type = "float" />

< param name = "Y" type = "float" />

< param name = "Z" type = "float" />

</ technique_common>

< source id = "Model_E0_MESH_0_REF_1_lib_texcoords" name = "texcoords" >

< float_array id = "Model_E0_MESH_0_REF_1_lib_texcoords_array" count = "6" >

0 0 0.5 1 1 0

</ float_array>

< technique_common>

< accessor count = "3" source = "#Model_E0_MESH_0_REF_1_lib_texcoords_array" stride = "2" >

< param name = "X" type = "float" />

< param name = "Y" type = "float" />

</ technique_common>

< source id = "Model_E0_MESH_0_REF_1_lib_tangents" name = "tangent" >

< float_array id = "Model_E0_MESH_0_REF_1_lib_tangents_array" count = "9" >

1 0 0 1 0 0 1 0 0

</ float_array>

< technique_common>

< accessor count = "3" source = "#Model_E0_MESH_0_REF_1_lib_tangents_array" stride = "3" >

< param name = "X" type = "float" />

< param name = "Y" type = "float" />

< param name = "Z" type = "float" />

</ technique_common>

< source id = "Model_E0_MESH_0_REF_1_lib_binormals" name = "binormal" >

< float_array id = "Model_E0_MESH_0_REF_1_lib_binormals_array" count = "9" >

0 1 0 0 0 0 0 1 0

</ float_array>

< technique_common>

< accessor count = "3" source = "#Model_E0_MESH_0_REF_1_lib_binormals_array" stride = "3" >

< param name = "X" type = "float" />

< param name = "Y" type = "float" />

< param name = "Z" type = "float" />

</ technique_common>

< vertices id = "Model_E0_MESH_0_REF_1_lib_vertices" >

< input semantic = "POSITION" source = "#Model_E0_MESH_0_REF_1_lib_positions" />

< input semantic = "NORMAL" source = "#Model_E0_MESH_0_REF_1_lib_normals" />

< input semantic = "TEXCOORD" source = "#Model_E0_MESH_0_REF_1_lib_texcoords" />

< input semantic = "TANGENT" source = "#Model_E0_MESH_0_REF_1_lib_tangents" />

< input semantic = "BINORMAL" source = "#Model_E0_MESH_0_REF_1_lib_binormals" />

< triangles count = "1" material = "Textured_Bump_E0_MP_MAT" >

< input offset = "0" semantic = "VERTEX" source = "#Model_E0_MESH_0_REF_1_lib_vertices" />

< p>

0 1 2

</ p>

</ mesh>
