input

The input element must occur at least one time. These inputs are local inputs.

Element Information

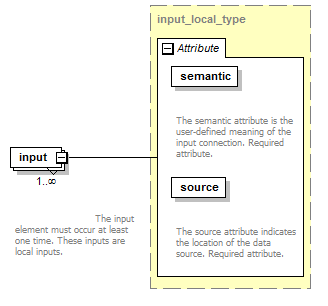

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
semantic xs:NMTOKEN required
The semantic attribute is the user-defined meaning of the input connection. Required attribute.
source urifragment_type required
The source attribute indicates the location of the data source. Required attribute.

Source

<xs:element name="input" type="input_local_type" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The input element must occur at least one time. These inputs are local inputs.</xs:documentation>
  </xs:annotation>
</xs:element>

Sample

< vertices xmlns = "http://www.collada.org/2008/03/COLLADASchema" id = "Model_E0_MESH_0_REF_1_lib_vertices" >

< input semantic = "POSITION" source = "#Model_E0_MESH_0_REF_1_lib_positions" />

< input semantic = "NORMAL" source = "#Model_E0_MESH_0_REF_1_lib_normals" />

< input semantic = "TEXCOORD" source = "#Model_E0_MESH_0_REF_1_lib_texcoords" />

< input semantic = "TANGENT" source = "#Model_E0_MESH_0_REF_1_lib_tangents" />

< input semantic = "BINORMAL" source = "#Model_E0_MESH_0_REF_1_lib_binormals" />

</ vertices>
