PRODUCT

Element Information

Model

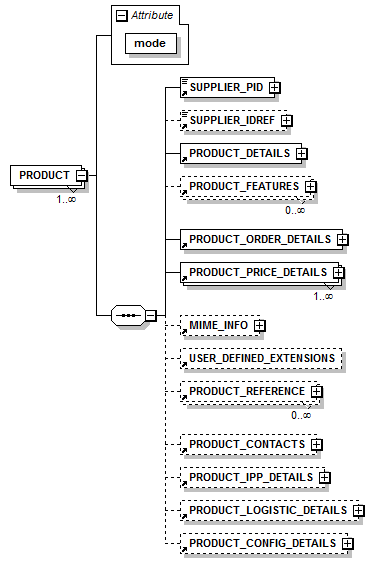

SUPPLIER_PID , SUPPLIER_IDREF{0,1} , PRODUCT_DETAILS , PRODUCT_FEATURES* , PRODUCT_ORDER_DETAILS , PRODUCT_PRICE_DETAILS+ , MIME_INFO{0,1} , USER_DEFINED_EXTENSIONS{0,1} , PRODUCT_REFERENCE* , PRODUCT_CONTACTS{0,1} , PRODUCT_IPP_DETAILS{0,1} , PRODUCT_LOGISTIC_DETAILS{0,1} , PRODUCT_CONFIG_DETAILS{0,1}
Children: MIME_INFO, PRODUCT_CONFIG_DETAILS, PRODUCT_CONTACTS, PRODUCT_DETAILS, PRODUCT_FEATURES, PRODUCT_IPP_DETAILS, PRODUCT_LOGISTIC_DETAILS, PRODUCT_ORDER_DETAILS, PRODUCT_PRICE_DETAILS, PRODUCT_REFERENCE, SUPPLIER_IDREF, SUPPLIER_PID, USER_DEFINED_EXTENSIONS

Attributes

QName Type Fixed Default Use Inheritable Annotation
mode restriction of dtSTRING required

Source

<xsd:element name="PRODUCT" maxOccurs="unbounded">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="SUPPLIER_PID"/>
      <xsd:element ref="SUPPLIER_IDREF" minOccurs="0"/>
      <xsd:element ref="PRODUCT_DETAILS"/>
      <xsd:element ref="PRODUCT_FEATURES" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="PRODUCT_ORDER_DETAILS"/>
      <xsd:element ref="PRODUCT_PRICE_DETAILS" maxOccurs="unbounded"/>
      <xsd:element ref="MIME_INFO" minOccurs="0"/>
      <xsd:element ref="USER_DEFINED_EXTENSIONS" minOccurs="0"/>
      <xsd:element ref="PRODUCT_REFERENCE" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="PRODUCT_CONTACTS" minOccurs="0"/>
      <xsd:element ref="PRODUCT_IPP_DETAILS" minOccurs="0"/>
      <xsd:element ref="PRODUCT_LOGISTIC_DETAILS" minOccurs="0"/>
      <xsd:element ref="PRODUCT_CONFIG_DETAILS" minOccurs="0"/>
    </xsd:sequence>
    <xsd:attribute name="mode" use="required">
      <xsd:simpleType>
        <xsd:restriction base="dtSTRING">
          <xsd:minLength value="1"/>
          <xsd:maxLength value="20"/>
          <xsd:enumeration value="delete"/>
          <xsd:enumeration value="new"/>
          <xsd:enumeration value="update"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
  </xsd:complexType>
</xsd:element>

Sample
