PRODUCT_FEATURES

Element Information

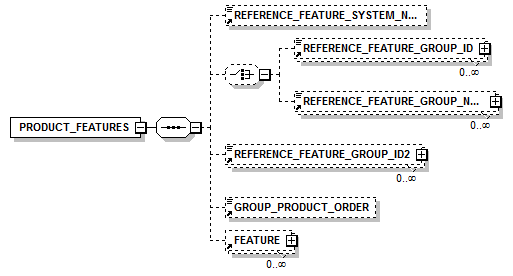

Model

REFERENCE_FEATURE_SYSTEM_NAME{0,1} , (REFERENCE_FEATURE_GROUP_ID* | REFERENCE_FEATURE_GROUP_NAME*) , REFERENCE_FEATURE_GROUP_ID2* , GROUP_PRODUCT_ORDER{0,1} , FEATURE*
Children: FEATURE, GROUP_PRODUCT_ORDER, REFERENCE_FEATURE_GROUP_ID, REFERENCE_FEATURE_GROUP_ID2, REFERENCE_FEATURE_GROUP_NAME, REFERENCE_FEATURE_SYSTEM_NAME

Used By

Elements T_NEW_CATALOG/PRODUCT, T_UPDATE_PRODUCTS/PRODUCT

Source

<xsd:element name="PRODUCT_FEATURES">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="REFERENCE_FEATURE_SYSTEM_NAME" minOccurs="0"/>
      <xsd:choice minOccurs="0">
        <xsd:element ref="REFERENCE_FEATURE_GROUP_ID" maxOccurs="unbounded" minOccurs="0"/>
        <xsd:element ref="REFERENCE_FEATURE_GROUP_NAME" maxOccurs="unbounded" minOccurs="0"/>
      </xsd:choice>
      <xsd:element ref="REFERENCE_FEATURE_GROUP_ID2" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="GROUP_PRODUCT_ORDER" minOccurs="0"/>
      <xsd:element ref="FEATURE" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

Sample
