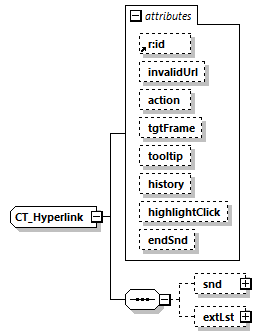

CT_Hyperlink

Complex Type Information

Model

customXml | smartTag | sdt | dir | bdo | r | proofErr{0,1} | permStart{0,1} | permEnd{0,1} | bookmarkStart | bookmarkEnd | moveFromRangeStart | moveFromRangeEnd | moveToRangeStart | moveToRangeEnd | commentRangeStart | commentRangeEnd | customXmlInsRangeStart | customXmlInsRangeEnd | customXmlDelRangeStart | customXmlDelRangeEnd | customXmlMoveFromRangeStart | customXmlMoveFromRangeEnd | customXmlMoveToRangeStart | customXmlMoveToRangeEnd | ins{0,1} | del{0,1} | moveFrom | moveTo | oMathPara | oMath | fldSimple* | hyperlink | subDoc
Children: bdo, bookmarkEnd, bookmarkStart, commentRangeEnd, commentRangeStart, customXml, customXmlDelRangeEnd, customXmlDelRangeStart, customXmlInsRangeEnd, customXmlInsRangeStart, customXmlMoveFromRangeEnd, customXmlMoveFromRangeStart, customXmlMoveToRangeEnd, customXmlMoveToRangeStart, del, dir, fldSimple, hyperlink, ins, moveFrom, moveFromRangeEnd, moveFromRangeStart, moveTo, moveToRangeEnd, moveToRangeStart, oMath, oMathPara, permEnd, permStart, proofErr, r, sdt, smartTag, subDoc

Attributes

QName Type Fixed Default Use Inheritable Annotation
anchor ST_String optional
docLocation ST_String optional
history ST_OnOff optional
id ST_RelationshipId optional
tgtFrame ST_String optional
tooltip ST_String optional

Used By

Elements EG_PContent/hyperlink, EG_PContentBase/hyperlink

Source

<xsd:complexType name="CT_Hyperlink">
  <xsd:group ref="EG_PContent" minOccurs="0" maxOccurs="unbounded"/>
  <xsd:attribute name="tgtFrame" type="s:ST_String" use="optional"/>
  <xsd:attribute name="tooltip" type="s:ST_String" use="optional"/>
  <xsd:attribute name="docLocation" type="s:ST_String" use="optional"/>
  <xsd:attribute name="history" type="s:ST_OnOff" use="optional"/>
  <xsd:attribute name="anchor" type="s:ST_String" use="optional"/>
  <xsd:attribute ref="r:id"/>
</xsd:complexType>
