connectorCausalExpression:simpleActionPrototype

Complex Type Information

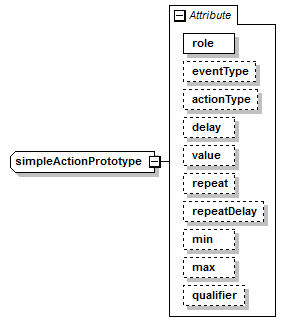

Model

Attributes

QName	Type	Use
actionType	connectorCausalExpression:actionNamePrototype	optional
delay	string	optional
eventType	connectorCommonPart:eventPrototype	optional
max	connectorCausalExpression:maxUnion	optional
min	positiveInteger	optional
qualifier	connectorCausalExpression:actionOperatorPrototype	optional
repeat	positiveInteger	optional
repeatDelay	string	optional
role	connectorCausalExpression:actionRoleUnion	required
value	string	optional

Used By

Complex Type	profile:simpleActionType
Element	connectorCausalExpression:simpleAction

Source

<complexType name="simpleActionPrototype">
  <attribute name="role" type="connectorCausalExpression:actionRoleUnion" use="required"/>
  <attribute name="eventType" type="connectorCommonPart:eventPrototype" use="optional"/>
  <attribute name="actionType" type="connectorCausalExpression:actionNamePrototype" use="optional"/>
  <attribute name="delay" type="string" use="optional"/>
  <attribute name="value" type="string" use="optional"/>
  <attribute name="repeat" type="positiveInteger" use="optional"/>
  <attribute name="repeatDelay" type="string" use="optional"/>
  <attribute name="min" type="positiveInteger" use="optional"/>
  <attribute name="max" type="connectorCausalExpression:maxUnion" use="optional"/>
  <attribute name="qualifier" type="connectorCausalExpression:actionOperatorPrototype" use="optional"/>
</complexType>
