profile:headType

Complex Type Information

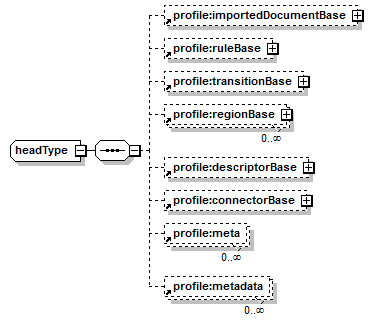

Model

profile:importedDocumentBase{0,1} , profile:ruleBase{0,1} , profile:transitionBase{0,1} , profile:regionBase* , profile:descriptorBase{0,1} , profile:connectorBase{0,1} , profile:meta* , profile:metadata*

Children: profile:connectorBase, profile:descriptorBase, profile:importedDocumentBase, profile:meta, profile:metadata, profile:regionBase, profile:ruleBase, profile:transitionBase

Used By

Element

profile:head

Source

<complexType name="headType">
  <complexContent>
    <extension base="structure:headPrototype">
      <sequence>
        <element ref="profile:importedDocumentBase" minOccurs="0" maxOccurs="1"/>
        <element ref="profile:ruleBase" minOccurs="0" maxOccurs="1"/>
        <element ref="profile:transitionBase" minOccurs="0" maxOccurs="1"/>
        <element ref="profile:regionBase" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="profile:descriptorBase" minOccurs="0" maxOccurs="1"/>
        <element ref="profile:connectorBase" minOccurs="0" maxOccurs="1"/>
        <element ref="profile:meta" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="profile:metadata" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
