wedge

The wedge type represents crescendo and diminuendo wedge symbols. The type attribute is crescendo for the start of a wedge that is closed at the left side, and diminuendo for the start of a wedge that is closed on the right side. Spread values are measured in tenths; those at the start of a crescendo wedge or end of a diminuendo wedge are ignored.

Complex Type Information

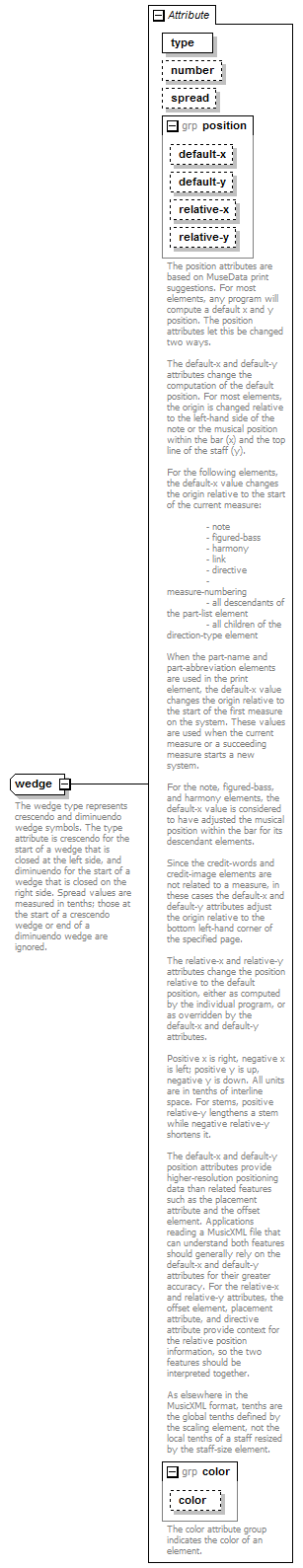

Model

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
number	number-level	optional
relative-x	tenths	optional
relative-y	tenths	optional
spread	tenths	optional
type	wedge-type	required

Used By

Element

direction-type/wedge

Source

<xs:complexType name="wedge">
  <xs:annotation>
    <xs:documentation>The wedge type represents crescendo and diminuendo wedge symbols. The type attribute is crescendo for the start of a wedge that is closed at the left side, and diminuendo for the start of a wedge that is closed on the right side. Spread values are measured in tenths; those at the start of a crescendo wedge or end of a diminuendo wedge are ignored.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="type" type="wedge-type" use="required"/>
  <xs:attribute name="number" type="number-level"/>
  <xs:attribute name="spread" type="tenths"/>
  <xs:attributeGroup ref="position"/>
  <xs:attributeGroup ref="color"/>
</xs:complexType>
