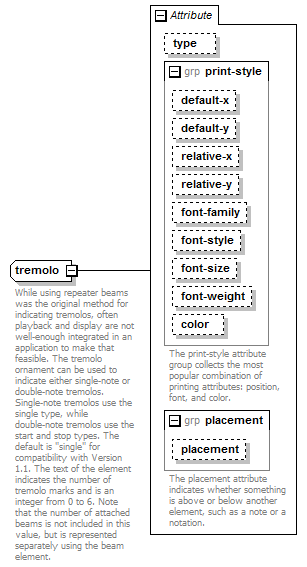

tremolo

While using repeater beams was the original method for indicating tremolos, often playback and display are not well-enough integrated in an application to make that feasible. The tremolo ornament can be used to indicate either single-note or double-note tremolos. Single-note tremolos use the single type, while double-note tremolos use the start and stop types. The default is "single" for compatibility with Version 1.1. The text of the element indicates the number of tremolo marks and is an integer from 0 to 6. Note that the number of attached beams is not included in this value, but is represented separately using the beam element.

Complex Type Information

Model

Attributes

QName	Type	Default	Use
color	color		optional
default-x	tenths		optional
default-y	tenths		optional
font-family	comma-separated-text		optional
font-size	font-size		optional
font-style	font-style		optional
font-weight	font-weight		optional
placement	above-below		optional
relative-x	tenths		optional
relative-y	tenths		optional
type	start-stop-single	single	optional

Used By

Element

ornaments/tremolo

Source

<xs:complexType name="tremolo">
  <xs:annotation>
    <xs:documentation>While using repeater beams was the original method for indicating tremolos, often playback and display are not well-enough integrated in an application to make that feasible. The tremolo ornament can be used to indicate either single-note or double-note tremolos. Single-note tremolos use the single type, while double-note tremolos use the start and stop types. The default is "single" for compatibility with Version 1.1. The text of the element indicates the number of tremolo marks and is an integer from 0 to 6. Note that the number of attached beams is not included in this value, but is represented separately using the beam element.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="tremolo-marks">
      <xs:attribute name="type" type="start-stop-single" default="single"/>
      <xs:attributeGroup ref="print-style"/>
      <xs:attributeGroup ref="placement"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
