tied

The tied type represents the notated tie. The tie element represents the tie sound.

Complex Type Information

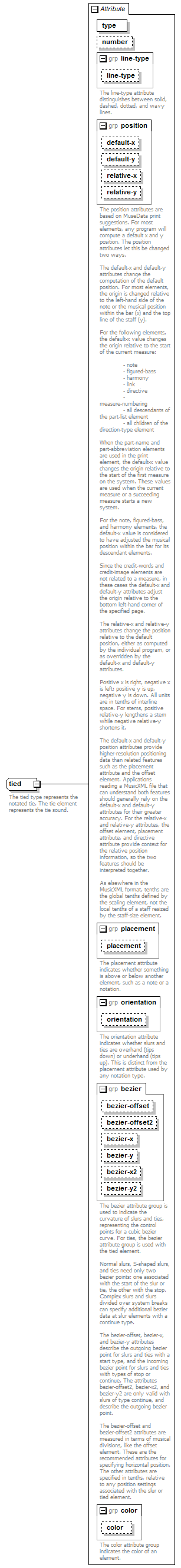

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
bezier-offset divisions optional
bezier-offset2 divisions optional
bezier-x tenths optional
bezier-x2 tenths optional
bezier-y tenths optional
bezier-y2 tenths optional
color color optional
default-x tenths optional
default-y tenths optional
line-type line-type optional
number number-level optional
orientation over-under optional
placement above-below optional
relative-x tenths optional
relative-y tenths optional
type start-stop required

Used By

Element notations/tied

Source

<xs:complexType name="tied">
  <xs:annotation>
    <xs:documentation>The tied type represents the notated tie. The tie element represents the tie sound.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="type" type="start-stop" use="required"/>
  <xs:attribute name="number" type="number-level"/>
  <xs:attributeGroup ref="line-type"/>
  <xs:attributeGroup ref="position"/>
  <xs:attributeGroup ref="placement"/>
  <xs:attributeGroup ref="orientation"/>
  <xs:attributeGroup ref="bezier"/>
  <xs:attributeGroup ref="color"/>
</xs:complexType>
