slide

Glissando and slide types both indicate rapidly moving from one pitch to the other so that individual notes are not discerned. The distinction is similar to that between NIFF's glissando and portamento elements. A slide is continuous between two notes and defaults to a solid line. The optional text for a is printed alongside the line.

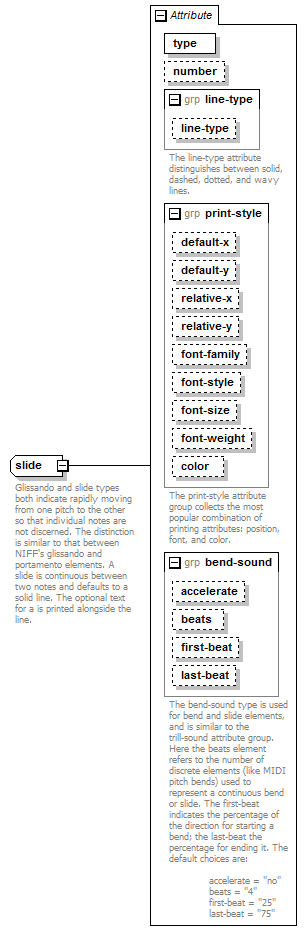

Complex Type Information

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
accelerate yes-no optional
beats trill-beats optional
color color optional
default-x tenths optional
default-y tenths optional
first-beat percent optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
last-beat percent optional
line-type line-type optional
number number-level 1 optional
relative-x tenths optional
relative-y tenths optional
type start-stop required

Used By

Element notations/slide

Source

<xs:complexType name="slide">
  <xs:annotation>
    <xs:documentation>Glissando and slide types both indicate rapidly moving from one pitch to the other so that individual notes are not discerned. The distinction is similar to that between NIFF's glissando and portamento elements. A slide is continuous between two notes and defaults to a solid line. The optional text for a is printed alongside the line.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attribute name="type" type="start-stop" use="required"/>
      <xs:attribute name="number" type="number-level" default="1"/>
      <xs:attributeGroup ref="line-type"/>
      <xs:attributeGroup ref="print-style"/>
      <xs:attributeGroup ref="bend-sound"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
