root-alter

The root-alter type represents the chromatic alteration of the root of the current chord within the harmony element. In some chord styles, the text for the root-step element may include root-alter information. In that case, the print-object attribute of the root-alter element can be set to no. The location attribute indicates whether the alteration should appear to the left or the right of the root-step; it is right by default.

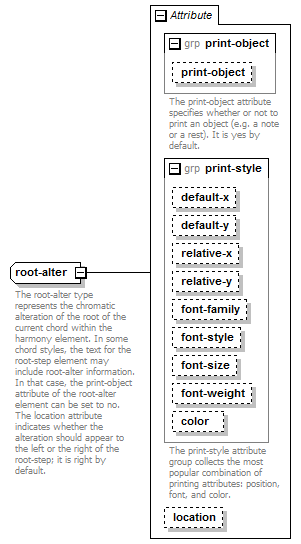

Complex Type Information

Model

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
location	left-right	optional
print-object	yes-no	optional
relative-x	tenths	optional
relative-y	tenths	optional

Used By

Element

root/root-alter

Source

<xs:complexType name="root-alter">
  <xs:annotation>
    <xs:documentation>The root-alter type represents the chromatic alteration of the root of the current chord within the harmony element. In some chord styles, the text for the root-step element may include root-alter information. In that case, the print-object attribute of the root-alter element can be set to no. The location attribute indicates whether the alteration should appear to the left or the right of the root-step; it is right by default.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="semitones">
      <xs:attributeGroup ref="print-object"/>
      <xs:attributeGroup ref="print-style"/>
      <xs:attribute name="location" type="left-right"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
