pedal

The pedal type represents piano pedal marks. The line attribute is yes if pedal lines are used, no if Ped and * signs are used. The change type is used with line set to yes.

Complex Type Information

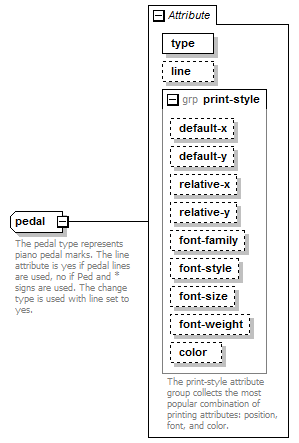

Model

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
line	yes-no	optional
relative-x	tenths	optional
relative-y	tenths	optional
type	start-stop-change	required

Used By

Element

direction-type/pedal

Source

<xs:complexType name="pedal">
  <xs:annotation>
    <xs:documentation>The pedal type represents piano pedal marks. The line attribute is yes if pedal lines are used, no if Ped and * signs are used. The change type is used with line set to yes.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="type" type="start-stop-change" use="required"/>
  <xs:attribute name="line" type="yes-no"/>
  <xs:attributeGroup ref="print-style"/>
</xs:complexType>
