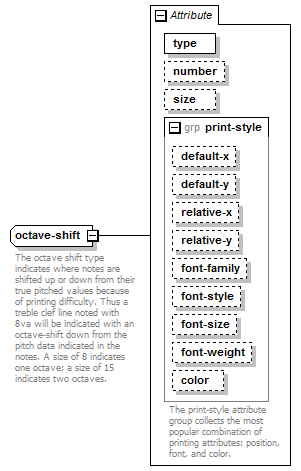

octave-shift

The octave shift type indicates where notes are shifted up or down from their true pitched values because of printing difficulty. Thus a treble clef line noted with 8va will be indicated with an octave-shift down from the pitch data indicated in the notes. A size of 8 indicates one octave; a size of 15 indicates two octaves.

Complex Type Information

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
number number-level optional
relative-x tenths optional
relative-y tenths optional
size xs:positiveInteger 8 optional
type up-down-stop required

Used By

Element direction-type/octave-shift

Source

<xs:complexType name="octave-shift">
  <xs:annotation>
    <xs:documentation>The octave shift type indicates where notes are shifted up or down from their true pitched values because of printing difficulty. Thus a treble clef line noted with 8va will be indicated with an octave-shift down from the pitch data indicated in the notes. A size of 8 indicates one octave; a size of 15 indicates two octaves.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="type" type="up-down-stop" use="required"/>
  <xs:attribute name="number" type="number-level"/>
  <xs:attribute name="size" type="xs:positiveInteger" default="8"/>
  <xs:attributeGroup ref="print-style"/>
</xs:complexType>
