non-arpeggiate

The non-arpeggiate type indicates that this note is at the top or bottom of a bracket indicating to not arpeggiate these notes. Since this does not involve playback, it is only used on the top or bottom notes, not on each note as for the arpeggiate type.

Complex Type Information

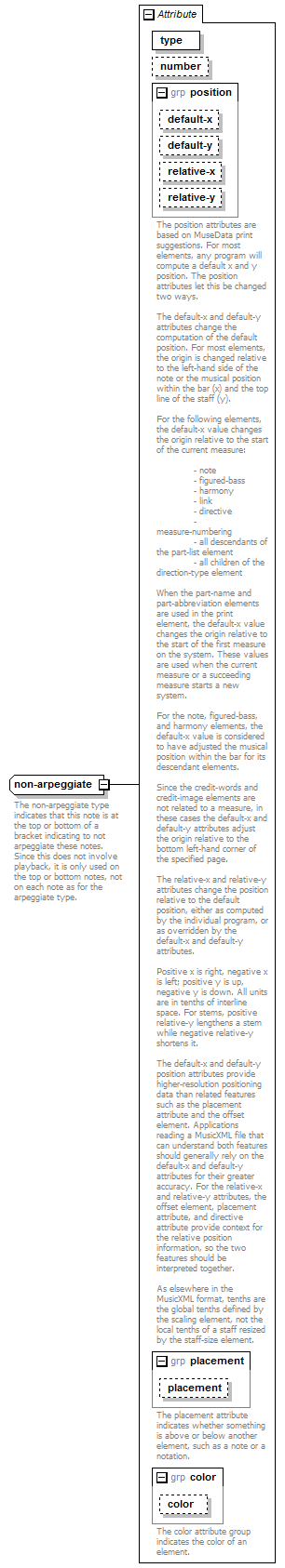

Model

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
number	number-level	optional
placement	above-below	optional
relative-x	tenths	optional
relative-y	tenths	optional
type	top-bottom	required

Used By

Element

notations/non-arpeggiate

Source

<xs:complexType name="non-arpeggiate">
  <xs:annotation>
    <xs:documentation>The non-arpeggiate type indicates that this note is at the top or bottom of a bracket indicating to not arpeggiate these notes. Since this does not involve playback, it is only used on the top or bottom notes, not on each note as for the arpeggiate type.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="type" type="top-bottom" use="required"/>
  <xs:attribute name="number" type="number-level"/>
  <xs:attributeGroup ref="position"/>
  <xs:attributeGroup ref="placement"/>
  <xs:attributeGroup ref="color"/>
</xs:complexType>
