kind

Kind indicates the type of chord. Degree elements can then add, subtract, or alter from these starting points The attributes are used to indicate the formatting of the symbol. Since the kind element is the constant in all the harmony-chord groups that can make up a polychord, many formatting attributes are here. The use-symbols attribute is yes if the kind should be represented when possible with harmony symbols rather than letters and numbers. These symbols include: major: a triangle, like Unicode 25B3 minor: -, like Unicode 002D augmented: +, like Unicode 002B diminished: °, like Unicode 00B0 half-diminished: ø, like Unicode 00F8 The text attribute describes how the kind should be spelled if not using symbols; it is ignored if use-symbols is yes. The stack-degrees attribute is yes if the degree elements should be stacked above each other. The parentheses-degrees attribute is yes if all the degrees should be in parentheses. The bracket-degrees attribute is yes if all the degrees should be in a bracket. If not specified, these values are implementation-specific. The alignment attributes are for the entire harmony-chord group of which this kind element is a part.

Complex Type Information

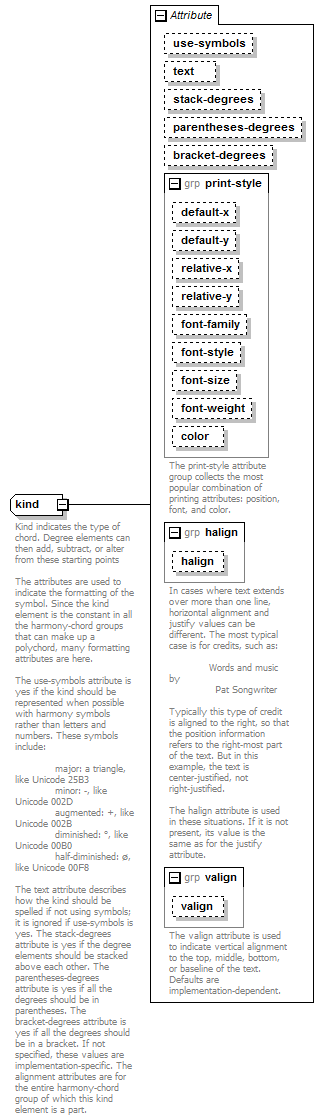

Model

Attributes

QName	Type	Use
bracket-degrees	yes-no	optional
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
halign	left-center-right	optional
parentheses-degrees	yes-no	optional
relative-x	tenths	optional
relative-y	tenths	optional
stack-degrees	yes-no	optional
text	xs:token	optional
use-symbols	yes-no	optional
valign	valign	optional

Used By

Element

harmony-chord/kind

Source

<xs:complexType name="kind">
  <xs:annotation>
    <xs:documentation>Kind indicates the type of chord. Degree elements can then add, subtract, or alter from these starting points The attributes are used to indicate the formatting of the symbol. Since the kind element is the constant in all the harmony-chord groups that can make up a polychord, many formatting attributes are here. The use-symbols attribute is yes if the kind should be represented when possible with harmony symbols rather than letters and numbers. These symbols include: major: a triangle, like Unicode 25B3 minor: -, like Unicode 002D augmented: +, like Unicode 002B diminished: °, like Unicode 00B0 half-diminished: ø, like Unicode 00F8 The text attribute describes how the kind should be spelled if not using symbols; it is ignored if use-symbols is yes. The stack-degrees attribute is yes if the degree elements should be stacked above each other. The parentheses-degrees attribute is yes if all the degrees should be in parentheses. The bracket-degrees attribute is yes if all the degrees should be in a bracket. If not specified, these values are implementation-specific. The alignment attributes are for the entire harmony-chord group of which this kind element is a part.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="kind-value">
      <xs:attribute name="use-symbols" type="yes-no"/>
      <xs:attribute name="text" type="xs:token"/>
      <xs:attribute name="stack-degrees" type="yes-no"/>
      <xs:attribute name="parentheses-degrees" type="yes-no"/>
      <xs:attribute name="bracket-degrees" type="yes-no"/>
      <xs:attributeGroup ref="print-style"/>
      <xs:attributeGroup ref="halign"/>
      <xs:attributeGroup ref="valign"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
