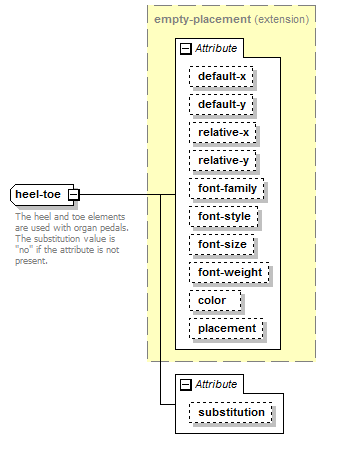

heel-toe

The heel and toe elements are used with organ pedals. The substitution value is "no" if the attribute is not present.

Complex Type Information

Model

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
placement	above-below	optional
relative-x	tenths	optional
relative-y	tenths	optional
substitution	yes-no	optional

Used By

Elements

technical/heel, technical/toe

Source

<xs:complexType name="heel-toe">
  <xs:annotation>
    <xs:documentation>The heel and toe elements are used with organ pedals. The substitution value is "no" if the attribute is not present.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="empty-placement">
      <xs:attribute name="substitution" type="yes-no"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
