bracket

Brackets are combined with words in a variety of modern directions. The line-end attribute specifies if there is a jog up or down (or both), an arrow, or nothing at the start or end of the bracket. If the line-end is up or down, the length of the jog can be specified using the end-length attribute. The line-type is solid by default.

Complex Type Information

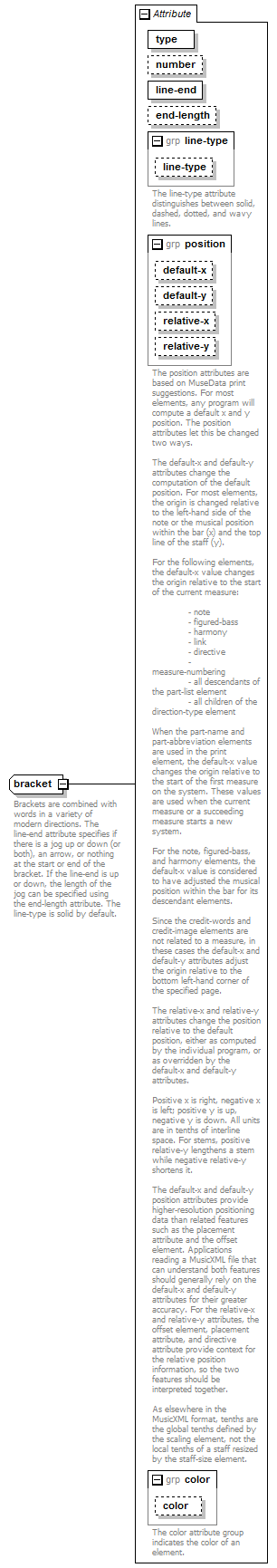

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
color color optional
default-x tenths optional
default-y tenths optional
end-length tenths optional
line-end line-end required
line-type line-type optional
number number-level optional
relative-x tenths optional
relative-y tenths optional
type start-stop required

Used By

Element direction-type/bracket

Source

<xs:complexType name="bracket">
  <xs:annotation>
    <xs:documentation>Brackets are combined with words in a variety of modern directions. The line-end attribute specifies if there is a jog up or down (or both), an arrow, or nothing at the start or end of the bracket. If the line-end is up or down, the length of the jog can be specified using the end-length attribute. The line-type is solid by default.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="type" type="start-stop" use="required"/>
  <xs:attribute name="number" type="number-level"/>
  <xs:attribute name="line-end" type="line-end" use="required"/>
  <xs:attribute name="end-length" type="tenths"/>
  <xs:attributeGroup ref="line-type"/>
  <xs:attributeGroup ref="position"/>
  <xs:attributeGroup ref="color"/>
</xs:complexType>
