arpeggiate

The arpeggiate type indicates that this note is part of an arpeggiated chord. The number attribute can be used to distinguish between two simultaneous chords arpeggiated separately (different numbers) or together (same number). The up-down attribute is used if there is an arrow on the arpeggio sign. By default, arpeggios go from the lowest to highest note.

Complex Type Information

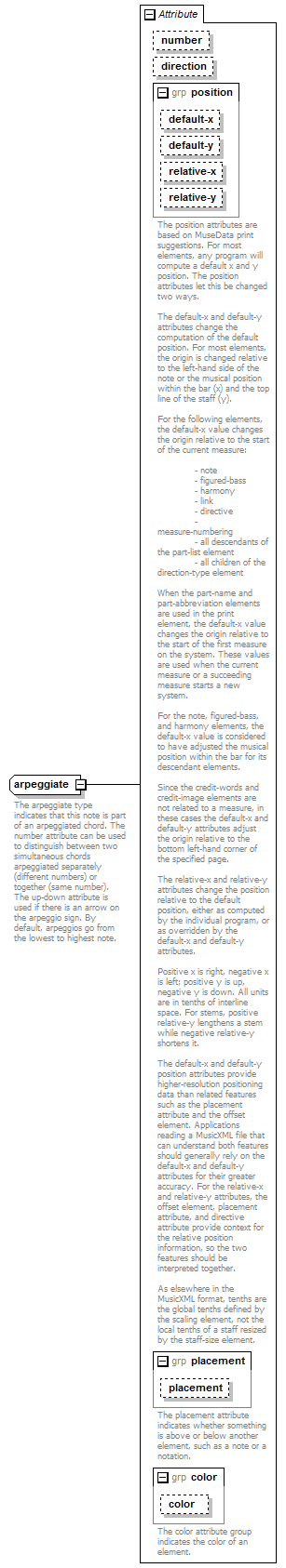

Model

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
direction	up-down	optional
number	number-level	optional
placement	above-below	optional
relative-x	tenths	optional
relative-y	tenths	optional

Used By

Element

notations/arpeggiate

Source

<xs:complexType name="arpeggiate">
  <xs:annotation>
    <xs:documentation>The arpeggiate type indicates that this note is part of an arpeggiated chord. The number attribute can be used to distinguish between two simultaneous chords arpeggiated separately (different numbers) or together (same number). The up-down attribute is used if there is an arrow on the arpeggio sign. By default, arpeggios go from the lowest to highest note.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="number" type="number-level"/>
  <xs:attribute name="direction" type="up-down"/>
  <xs:attributeGroup ref="position"/>
  <xs:attributeGroup ref="placement"/>
  <xs:attributeGroup ref="color"/>
</xs:complexType>
