appearance

The appearance type controls general graphical settings for the music's final form appearance on a printed page of display. Currently this includes support for line widths and definitions for note sizes, plus an extension element for other aspects of appearance.

Complex Type Information

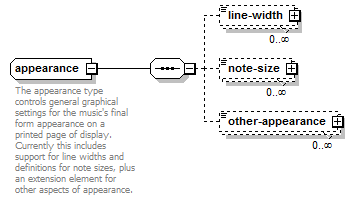

Model

line-width* , note-size* , other-appearance*

Children: line-width, note-size, other-appearance

Used By

Element

defaults/appearance

Source

<xs:complexType name="appearance">
  <xs:annotation>
    <xs:documentation>The appearance type controls general graphical settings for the music's final form appearance on a printed page of display. Currently this includes support for line widths and definitions for note sizes, plus an extension element for other aspects of appearance.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="line-width" type="line-width" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="note-size" type="note-size" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="other-appearance" type="other-appearance" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
