mmlHd:dailyHDRecord

Element Information

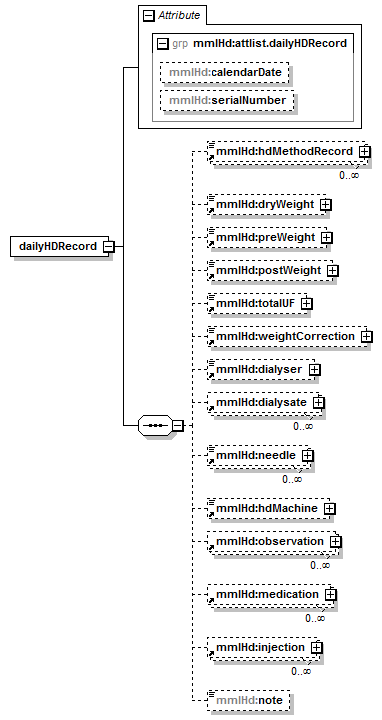

Model

mmlHd:hdMethodRecord* , mmlHd:dryWeight{0,1} , mmlHd:preWeight{0,1} , mmlHd:postWeight{0,1} , mmlHd:totalUF{0,1} , mmlHd:weightCorrection{0,1} , mmlHd:dialyser{0,1} , mmlHd:dialysate* , mmlHd:needle* , mmlHd:hdMachine{0,1} , mmlHd:observation* , mmlHd:medication* , mmlHd:injection* , mmlHd:note{0,1}
Children: mmlHd:dialysate, mmlHd:dialyser, mmlHd:dryWeight, mmlHd:hdMachine, mmlHd:hdMethodRecord, mmlHd:injection, mmlHd:medication, mmlHd:needle, mmlHd:note, mmlHd:observation, mmlHd:postWeight, mmlHd:preWeight, mmlHd:totalUF, mmlHd:weightCorrection

Attributes

QName Type Fixed Default Use Inheritable Annotation
mmlHd:calendarDate xs:date optional
mmlHd:serialNumber xs:string optional

Used By

Element mmlHd:HDProgressSection

Source

<xs:element name="dailyHDRecord">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mmlHd:hdMethodRecord"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlHd:dryWeight"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlHd:preWeight"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlHd:postWeight"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlHd:totalUF"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlHd:weightCorrection"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlHd:dialyser"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mmlHd:dialysate"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mmlHd:needle"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlHd:hdMachine"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mmlHd:observation"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mmlHd:medication"/>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mmlHd:injection"/>
      <xs:element minOccurs="0" maxOccurs="1" name="note" type="xs:string"/>
    </xs:sequence>
    <xs:attributeGroup ref="mmlHd:attlist.dailyHDRecord"/>
  </xs:complexType>
</xs:element>

Sample
