mmlFs:bodilyOutput

Element Information

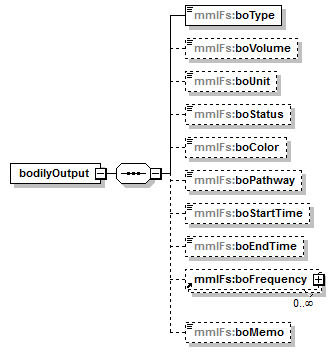

Model

mmlFs:boType , mmlFs:boVolume{0,1} , mmlFs:boUnit{0,1} , mmlFs:boStatus{0,1} , mmlFs:boColor{0,1} , mmlFs:boPathway{0,1} , mmlFs:boStartTime{0,1} , mmlFs:boEndTime{0,1} , mmlFs:boFrequency* , mmlFs:boMemo{0,1}
Children: mmlFs:boColor, mmlFs:boEndTime, mmlFs:boFrequency, mmlFs:boMemo, mmlFs:boPathway, mmlFs:boStartTime, mmlFs:boStatus, mmlFs:boType, mmlFs:boUnit, mmlFs:boVolume

Used By

Element mmlFs:FlowSheetModule

Source

<xs:element name="bodilyOutput">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="boType" type="xs:string" minOccurs="1" maxOccurs="1"/>
      <xs:element name="boVolume" type="xs:decimal" minOccurs="0" maxOccurs="1"/>
      <xs:element name="boUnit" type="xs:string" minOccurs="0" maxOccurs="1"/>
      <xs:element name="boStatus" type="xs:string" minOccurs="0" maxOccurs="1"/>
      <xs:element name="boColor" type="xs:string" minOccurs="0" maxOccurs="1"/>
      <xs:element name="boPathway" type="xs:string" minOccurs="0" maxOccurs="1"/>
      <xs:element name="boStartTime" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
      <xs:element name="boEndTime" type="xs:dateTime" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="mmlFs:boFrequency" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="boMemo" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Sample

< mmlFs:bodilyOutput xmlns:mmlFs = "http://www.medxml.net/MML/v4/ContentModule/FlowSheet/1.0" >

< mmlFs:boType>

urine

</ mmlFs:boType>

< mmlFs:boVolume>

1736

</ mmlFs:boVolume>

< mmlFs:boUnit>

ml

</ mmlFs:boUnit>

< mmlFs:boFrequency>

< mmlFs:bofTimes>

5

</ mmlFs:bofTimes>

< mmlFs:bofPeriodStartTime>

2016-12-01T09:00:00

</ mmlFs:bofPeriodStartTime>

< mmlFs:bofPeriodEndTime>

2016-12-01T21:00:00

</ mmlFs:bofPeriodEndTime>

</ mmlFs:boFrequency>

</ mmlFs:bodilyOutput>
