mmlRd:RegisteredDiagnosisModule

Element Information

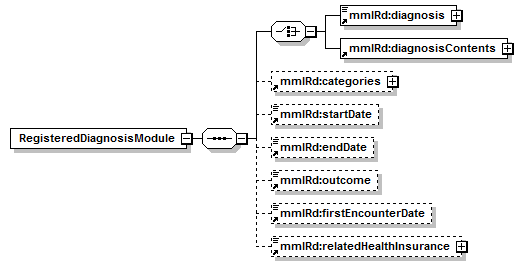

Model

(mmlRd:diagnosis | mmlRd:diagnosisContents) , mmlRd:categories{0,1} , mmlRd:startDate{0,1} , mmlRd:endDate{0,1} , mmlRd:outcome{0,1} , mmlRd:firstEncounterDate{0,1} , mmlRd:relatedHealthInsurance{0,1}

Children: mmlRd:categories, mmlRd:diagnosis, mmlRd:diagnosisContents, mmlRd:endDate, mmlRd:firstEncounterDate, mmlRd:outcome, mmlRd:relatedHealthInsurance, mmlRd:startDate

Used By

Elements

mml:content, mmlFcl:familyHistoryItem, mmlSg:surgicalDiagnosis, mmlSm:SummaryModule

Source

<xs:element name="RegisteredDiagnosisModule">
  <xs:complexType>
    <xs:sequence>
      <xs:choice>
        <xs:element ref="mmlRd:diagnosis"/>
        <xs:element ref="mmlRd:diagnosisContents"/>
      </xs:choice>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlRd:categories"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlRd:startDate"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlRd:endDate"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlRd:outcome"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlRd:firstEncounterDate"/>
      <xs:element minOccurs="0" maxOccurs="1" ref="mmlRd:relatedHealthInsurance"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Sample

< mmlSg:surgicalDiagnosis xmlns:mmlSg = "http://www.medxml.net/MML/v4/ContentModule/Surgery/1.0" xmlns:mmlRd = "http://www.medxml.net/MML/v4/ContentModule/RegisteredDiagnosis/1.0" >
