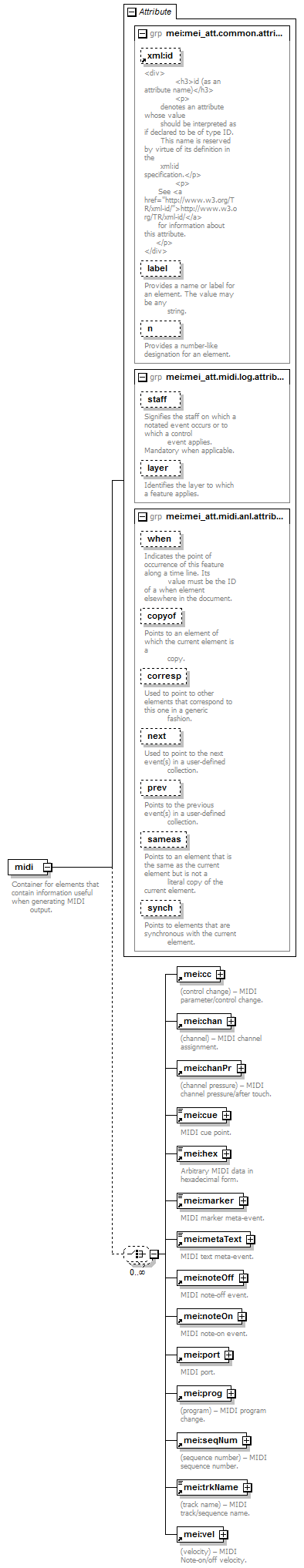

mei:midi

Container for elements that contain information useful when generating MIDI
output.

Element Information

Model

mei:cc | mei:chan | mei:chanPr | mei:cue | mei:hex | mei:marker | mei:metaText | mei:noteOff | mei:noteOn | mei:port | mei:prog | mei:seqNum | mei:trkName | mei:vel
Children: mei:cc, mei:chan, mei:chanPr, mei:cue, mei:hex, mei:marker, mei:metaText, mei:noteOff, mei:noteOn, mei:port, mei:prog, mei:seqNum, mei:trkName, mei:vel

Attributes

QName Type Fixed Default Use Inheritable Annotation
copyof mei:mei_data.URI optional
Points to an element of which the current element is a
copy.
corresp restriction of list of mei:mei_data.URI optional
Used to point to other elements that correspond to this one in a generic
fashion.
label xs:string optional
Provides a name or label for an element. The value may be any
string.
layer restriction of list of xs:positiveInteger optional
Identifies the layer to which a feature applies.
n optional
Provides a number-like designation for an element.
next restriction of list of mei:mei_data.URI optional
Used to point to the next event(s) in a user-defined
collection.
prev restriction of list of mei:mei_data.URI optional
Points to the previous event(s) in a user-defined
collection.
sameas restriction of list of mei:mei_data.URI optional
Points to an element that is the same as the current element but is not a
literal copy of the current element.
staff restriction of list of xs:positiveInteger optional
Signifies the staff on which a notated event occurs or to which a control
event applies. Mandatory when applicable.
synch restriction of list of mei:mei_data.URI optional
Points to elements that are synchronous with the current
element.
when mei:mei_data.URI optional
Indicates the point of occurrence of this feature along a time line. Its
value must be the ID of a when element elsewhere in the document.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.

Used By

Element Groups mei:mei_model.midiLike, mei:mei_model.midiLike_alternation, mei:mei_model.midiLike_sequence, mei:mei_model.midiLike_sequenceOptional, mei:mei_model.midiLike_sequenceOptionalRepeatable, mei:mei_model.midiLike_sequenceRepeatable

Source

<xs:element name="midi">
  <xs:annotation>
    <xs:documentation>Container for elements that contain information useful when generating MIDI output.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="mei:cc"/>
      <xs:element ref="mei:chan"/>
      <xs:element ref="mei:chanPr"/>
      <xs:element ref="mei:cue"/>
      <xs:element ref="mei:hex"/>
      <xs:element ref="mei:marker"/>
      <xs:element ref="mei:metaText"/>
      <xs:element ref="mei:noteOff"/>
      <xs:element ref="mei:noteOn"/>
      <xs:element ref="mei:port"/>
      <xs:element ref="mei:prog"/>
      <xs:element ref="mei:seqNum"/>
      <xs:element ref="mei:trkName"/>
      <xs:element ref="mei:vel"/>
    </xs:choice>
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.midi.log.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.midi.anl.attributes"/>
  </xs:complexType>
</xs:element>

Sample
