mei:mensuration

Captures information about mensuration within bibliographic
descriptions.

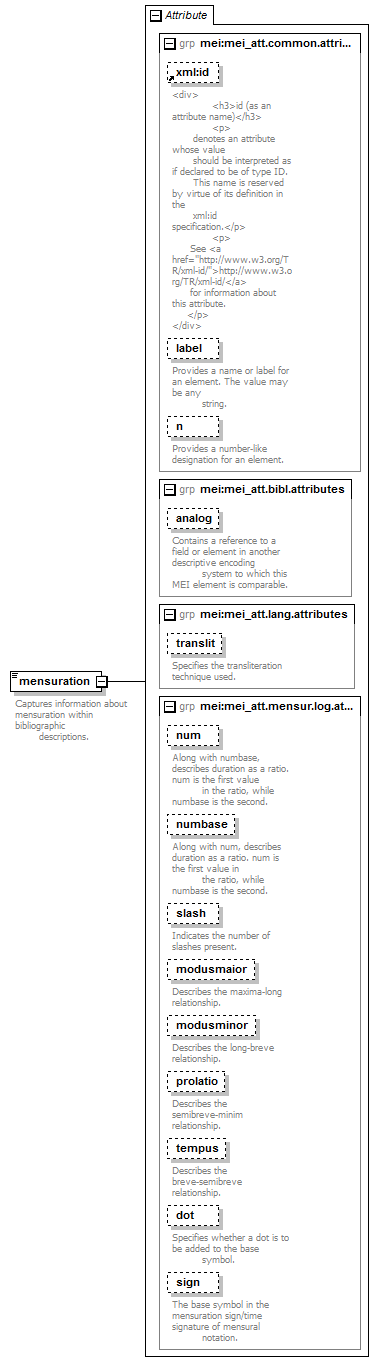

Element Information

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
analog xs:string optional
Contains a reference to a field or element in another descriptive encoding
system to which this MEI element is comparable.
dot mei:mei_data.BOOLEAN optional
Specifies whether a dot is to be added to the base
symbol.
label xs:string optional
Provides a name or label for an element. The value may be any
string.
modusmaior mei:mei_data.MODUSMAIOR optional
Describes the maxima-long relationship.
modusminor mei:mei_data.MODUSMINOR optional
Describes the long-breve relationship.
n optional
Provides a number-like designation for an element.
num xs:positiveInteger optional
Along with numbase, describes duration as a ratio. num is the first value
in the ratio, while numbase is the second.
numbase xs:positiveInteger optional
Along with num, describes duration as a ratio. num is the first value in
the ratio, while numbase is the second.
prolatio mei:mei_data.PROLATIO optional
Describes the semibreve-minim relationship.
sign mei:mei_data.MENSURATIONSIGN optional
The base symbol in the mensuration sign/time signature of mensural
notation.
slash mei:mei_data.SLASH optional
Indicates the number of slashes present.
tempus mei:mei_data.TEMPUS optional
Describes the breve-semibreve relationship.
translit xs:NMTOKEN optional
Specifies the transliteration technique used.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.
xml:lang xs:language optional
Identifies the language of the element's content. The values for this
attribute are language 'tags' as defined in BCP 47. All language tags that make use of
private use sub-tags must be documented in a corresponding language element in the MEI
header whose id attribute is the same as the language tag's value.

Used By

Element mei:mei_model.incipLike

Source

<xs:element name="mensuration" substitutionGroup="mei:mei_model.workIdent">
  <xs:annotation>
    <xs:documentation>Captures information about mensuration within bibliographic descriptions.</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.bibl.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.lang.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.mensur.log.attributes"/>
  </xs:complexType>
</xs:element>

Sample
