mei:mei_model.keyAccidLike

Element Information

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
accid mei:mei_data.ACCIDENTAL.EXPLICIT optional
Captures a written accidental.
altsym mei:mei_data.URI optional
Provides a way of pointing to a user-defined symbol. It must contain an ID
of a <symbolDef> element elsewhere in the document.
copyof mei:mei_data.URI optional
Points to an element of which the current element is a
copy.
corresp restriction of list of mei:mei_data.URI optional
Used to point to other elements that correspond to this one in a generic
fashion.
enclose mei:mei_data.ENCLOSURE optional
Records the characters often used to mark accidentals, articulations, and
sometimes notes as having a cautionary or editorial function. For an example of cautionary
accidentals enclosed in parentheses, see Read, p. 131, ex. 9-14.
facs restriction of list of mei:mei_data.URI optional
Permits the current element to reference a facsimile surface or image zone
which corresponds to it.
fontfam mei:mei_data.FONTFAMILY optional
Contains the name of a font-family.
fontname mei:mei_data.FONTNAME optional
Holds the name of a font.
fontsize mei:mei_data.FONTSIZE optional
Indicates the size of a font expressed in printers' points, i.e., 1/72nd
of an inch, relative terms, e.g., "small", "larger", etc., or percentage values relative
to "normal" size, e.g., "125%".
fontstyle mei:mei_data.FONTSTYLE optional
Records the style of a font, i.e, italic, oblique, or
normal.
fontweight mei:mei_data.FONTWEIGHT optional
Used to indicate bold type.
form restriction of xs:token optional
Specifies whether enharmonic (written) values or implicit
("perform-able") values are allowed.
glyphname xs:string optional
Glyph name.
glyphnum restriction of xs:string optional
Numeric glyph reference in hexadecimal notation, e.g. "#xE000" or
"U+E000". N.B. SMuFL version 1.18 uses the range U+E000 - U+ECBF.
label xs:string optional
Provides a name or label for an element. The value may be any
string.
loc mei:mei_data.STAFFLOC optional
Holds the staff location of the feature.
n optional
Provides a number-like designation for an element.
next restriction of list of mei:mei_data.URI optional
Used to point to the next event(s) in a user-defined
collection.
oct mei:mei_data.OCTAVE optional
Captures written octave information.
pname mei:mei_data.PITCHNAME optional
Contains a written pitch name.
prev restriction of list of mei:mei_data.URI optional
Points to the previous event(s) in a user-defined
collection.
sameas restriction of list of mei:mei_data.URI optional
Points to an element that is the same as the current element but is not a
literal copy of the current element.
synch restriction of list of mei:mei_data.URI optional
Points to elements that are synchronous with the current
element.
when mei:mei_data.URI optional
Indicates the point of occurrence of this feature along a time line. Its
value must be the ID of a when element elsewhere in the document.
x xs:decimal optional
Encodes an x coordinate for a feature in an output coordinate system. When
it is necessary to record the placement of a feature in a facsimile image, use the facs
attribute.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.
y xs:decimal optional
Encodes an y coordinate for a feature in an output coordinate system. When
it is necessary to record the placement of a feature in a facsimile image, use the facs
attribute.

Used By

Element mei:keySig

Source

<xs:element name="mei_model.keyAccidLike" abstract="true">
  <xs:complexType>
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.facsimile.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.keyAccid.anl.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.keyAccid.log.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.keyAccid.vis.attributes"/>
    <xs:attribute name="form">
      <xs:annotation>
        <xs:documentation>Specifies whether enharmonic (written) values or implicit ("perform-able") values are allowed.</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="implicit">
            <xs:annotation>
              <xs:documentation>Only performed values (sharp, flat, natural) allowed.</xs:documentation>
            </xs:annotation>
          </xs:enumeration>
          <xs:enumeration value="explicit">
            <xs:annotation>
              <xs:documentation>All enharmonic (written) values allowed.</xs:documentation>
            </xs:annotation>
          </xs:enumeration>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>

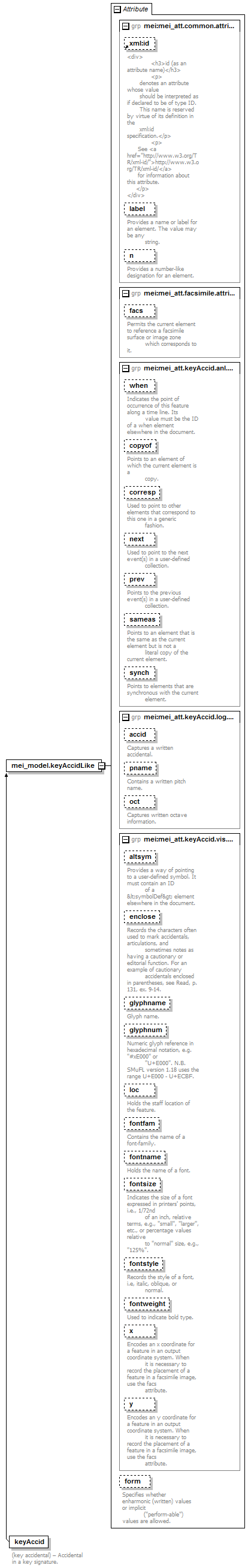

Sample
