mei:mei_model.instrDefLike

Element Information

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
label xs:string optional
Provides a name or label for an element. The value may be any
string.
midi.channel mei:mei_data.MIDICHANNEL optional
Records a MIDI channel value.
midi.duty mei:mei_data.PERCENT optional
Specifies the 'on' part of the duty cycle as a percentage of a note's
duration.
midi.instrname mei:mei_data.MIDINAMES optional
Provides a General MIDI label for the MIDI instrument.
midi.instrnum mei:mei_data.MIDIVALUE optional
Sets the MIDI instrument number.
midi.pan mei:mei_data.MIDIVALUE optional
Sets the instrument's position in a stereo field. Values of 0 and 1 both
pan left, 127 pans right, and 64 pans to the center.
midi.port mei:mei_data.MIDIVALUE optional
Sets the MIDI port value.
midi.track xs:positiveInteger optional
Sets the MIDI track.
midi.volume mei:mei_data.MIDIVALUE optional
Sets the instrument's volume.
n optional
Provides a number-like designation for an element.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.

Used By

Elements mei:instrGrp, mei:mei_model.layerDefLike, mei:mei_model.staffGrpLike, mei:staffDef

Source

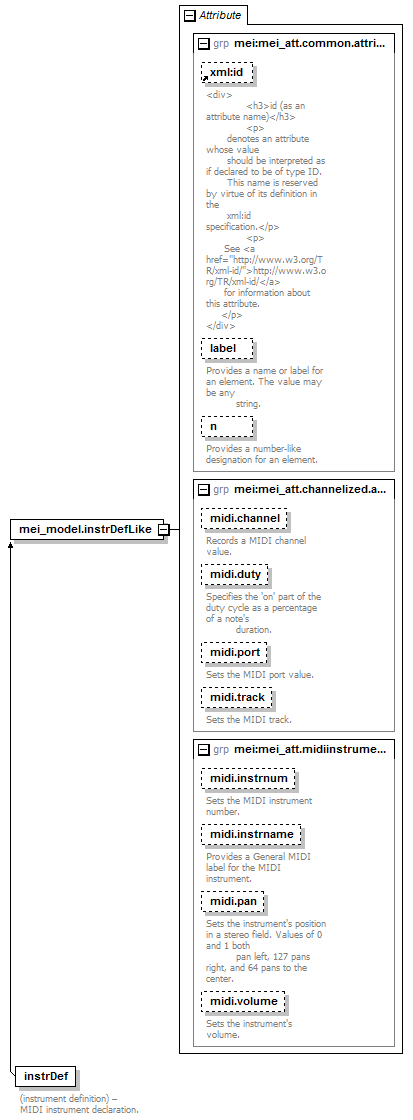

<xs:element name="mei_model.instrDefLike" abstract="true">
  <xs:complexType>
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.channelized.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.midiinstrument.attributes"/>
  </xs:complexType>
</xs:element>

Sample
