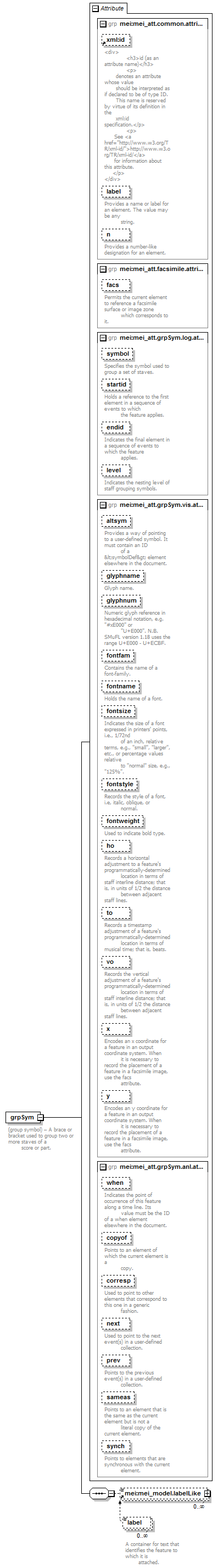

mei:grpSym

(group symbol) – A brace or bracket used to group two or more staves of a
score or part.

Element Information

Model

mei:mei_model.labelLike*
Children: mei:mei_model.labelLike

Attributes

QName Type Fixed Default Use Inheritable Annotation
altsym mei:mei_data.URI optional
Provides a way of pointing to a user-defined symbol. It must contain an ID
of a <symbolDef> element elsewhere in the document.
copyof mei:mei_data.URI optional
Points to an element of which the current element is a
copy.
corresp restriction of list of mei:mei_data.URI optional
Used to point to other elements that correspond to this one in a generic
fashion.
endid mei:mei_data.URI optional
Indicates the final element in a sequence of events to which the feature
applies.
facs restriction of list of mei:mei_data.URI optional
Permits the current element to reference a facsimile surface or image zone
which corresponds to it.
fontfam mei:mei_data.FONTFAMILY optional
Contains the name of a font-family.
fontname mei:mei_data.FONTNAME optional
Holds the name of a font.
fontsize mei:mei_data.FONTSIZE optional
Indicates the size of a font expressed in printers' points, i.e., 1/72nd
of an inch, relative terms, e.g., "small", "larger", etc., or percentage values relative
to "normal" size, e.g., "125%".
fontstyle mei:mei_data.FONTSTYLE optional
Records the style of a font, i.e, italic, oblique, or
normal.
fontweight mei:mei_data.FONTWEIGHT optional
Used to indicate bold type.
glyphname xs:string optional
Glyph name.
glyphnum restriction of xs:string optional
Numeric glyph reference in hexadecimal notation, e.g. "#xE000" or
"U+E000". N.B. SMuFL version 1.18 uses the range U+E000 - U+ECBF.
ho mei:mei_data.MEASUREMENTREL optional
Records a horizontal adjustment to a feature's programmatically-determined
location in terms of staff interline distance; that is, in units of 1/2 the distance
between adjacent staff lines.
label xs:string optional
Provides a name or label for an element. The value may be any
string.
level xs:positiveInteger optional
Indicates the nesting level of staff grouping symbols.
n optional
Provides a number-like designation for an element.
next restriction of list of mei:mei_data.URI optional
Used to point to the next event(s) in a user-defined
collection.
prev restriction of list of mei:mei_data.URI optional
Points to the previous event(s) in a user-defined
collection.
sameas restriction of list of mei:mei_data.URI optional
Points to an element that is the same as the current element but is not a
literal copy of the current element.
startid mei:mei_data.URI optional
Holds a reference to the first element in a sequence of events to which
the feature applies.
symbol restriction of xs:token optional
Specifies the symbol used to group a set of staves.
synch restriction of list of mei:mei_data.URI optional
Points to elements that are synchronous with the current
element.
to mei:mei_data.TSTAMPOFFSET optional
Records a timestamp adjustment of a feature's programmatically-determined
location in terms of musical time; that is, beats.
vo mei:mei_data.MEASUREMENTREL optional
Records the vertical adjustment of a feature's programmatically-determined
location in terms of staff interline distance; that is, in units of 1/2 the distance
between adjacent staff lines.
when mei:mei_data.URI optional
Indicates the point of occurrence of this feature along a time line. Its
value must be the ID of a when element elsewhere in the document.
x xs:decimal optional
Encodes an x coordinate for a feature in an output coordinate system. When
it is necessary to record the placement of a feature in a facsimile image, use the facs
attribute.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.
y xs:decimal optional
Encodes an y coordinate for a feature in an output coordinate system. When
it is necessary to record the placement of a feature in a facsimile image, use the facs
attribute.

Used By

Elements mei:mei_model.staffGrpLike, mei:scoreDef

Source

<xs:element name="grpSym">
  <xs:annotation>
    <xs:documentation>(group symbol) – A brace or bracket used to group two or more staves of a score or part.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" maxOccurs="unbounded" ref="mei:mei_model.labelLike"/>
    </xs:sequence>
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.facsimile.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.grpSym.log.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.grpSym.vis.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.grpSym.anl.attributes"/>
  </xs:complexType>
</xs:element>

Sample
