mei:fig

(figure) – Groups elements representing or containing graphic information
such as an illustration or figure.

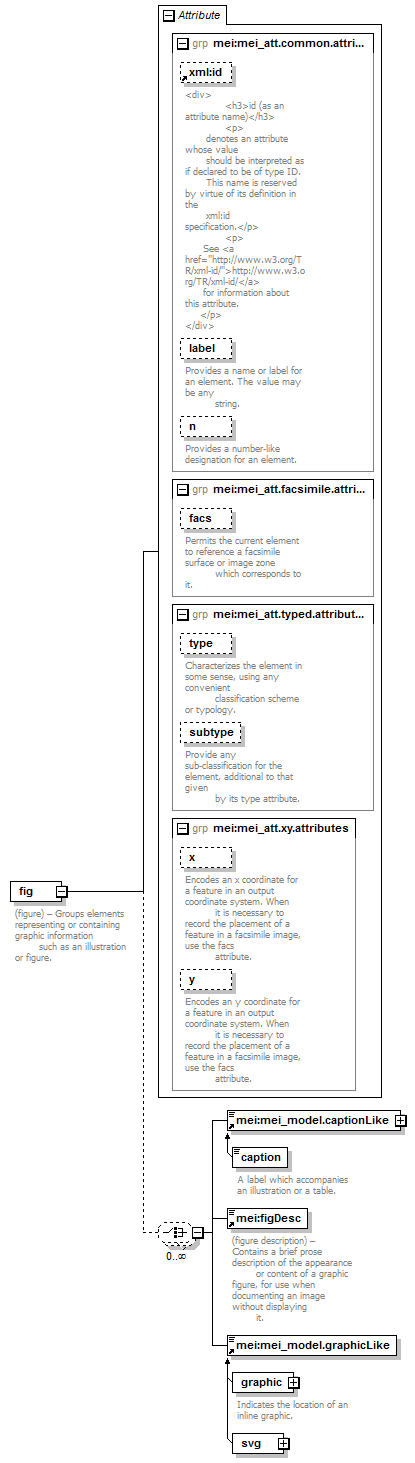

Element Information

Model

mei:mei_model.captionLike | mei:figDesc | mei:mei_model.graphicLike
Children: mei:figDesc, mei:mei_model.captionLike, mei:mei_model.graphicLike

Attributes

QName Type Fixed Default Use Inheritable Annotation
facs restriction of list of mei:mei_data.URI optional
Permits the current element to reference a facsimile surface or image zone
which corresponds to it.
label xs:string optional
Provides a name or label for an element. The value may be any
string.
n optional
Provides a number-like designation for an element.
subtype xs:NMTOKEN optional
Provide any sub-classification for the element, additional to that given
by its type attribute.
type xs:NMTOKEN optional
Characterizes the element in some sense, using any convenient
classification scheme or typology.
x xs:decimal optional
Encodes an x coordinate for a feature in an output coordinate system. When
it is necessary to record the placement of a feature in a facsimile image, use the facs
attribute.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.
y xs:decimal optional
Encodes an y coordinate for a feature in an output coordinate system. When
it is necessary to record the placement of a feature in a facsimile image, use the facs
attribute.

Used By

Element Groups mei:mei_model.figureLike, mei:mei_model.figureLike_alternation, mei:mei_model.figureLike_sequence, mei:mei_model.figureLike_sequenceOptional, mei:mei_model.figureLike_sequenceOptionalRepeatable, mei:mei_model.figureLike_sequenceRepeatable

Source

<xs:element name="fig">
  <xs:annotation>
    <xs:documentation>(figure) – Groups elements representing or containing graphic information such as an illustration or figure.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="mei:mei_model.captionLike"/>
      <xs:element ref="mei:figDesc"/>
      <xs:element ref="mei:mei_model.graphicLike"/>
    </xs:choice>
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.facsimile.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.typed.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.xy.attributes"/>
  </xs:complexType>
</xs:element>

Sample
