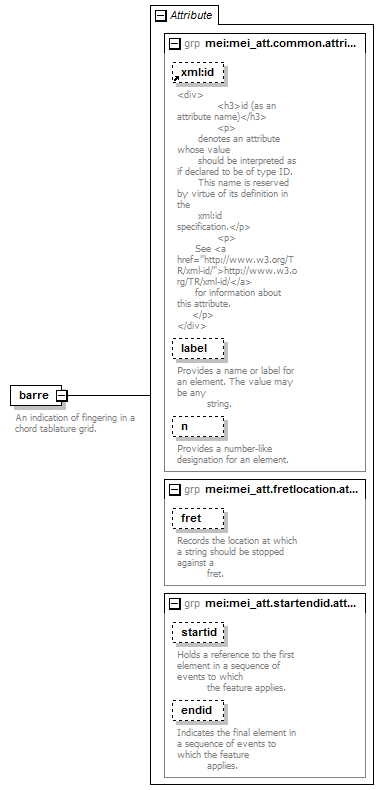

mei:barre

An indication of fingering in a chord tablature grid.

Element Information

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
endid mei:mei_data.URI optional
Indicates the final element in a sequence of events to which the feature
applies.
fret mei:mei_data.FRET optional
Records the location at which a string should be stopped against a
fret.
label xs:string optional
Provides a name or label for an element. The value may be any
string.
n optional
Provides a number-like designation for an element.
startid mei:mei_data.URI optional
Holds a reference to the first element in a sequence of events to which
the feature applies.
xml:base mei:mei_data.URI optional
Provides a base URI reference with which applications can resolve relative
URI references into absolute URI references.
xml:id xs:ID optional
Regularizes the naming of an element and thus facilitates building links
between it and other resources. Each id attribute within a document must have a unique
value.

Used By

Element mei:chordDef

Source

<xs:element name="barre">
  <xs:annotation>
    <xs:documentation>An indication of fingering in a chord tablature grid.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attributeGroup ref="mei:mei_att.common.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.fretlocation.attributes"/>
    <xs:attributeGroup ref="mei:mei_att.startendid.attributes"/>
  </xs:complexType>
</xs:element>

Sample
