db:audiodata

Element Information

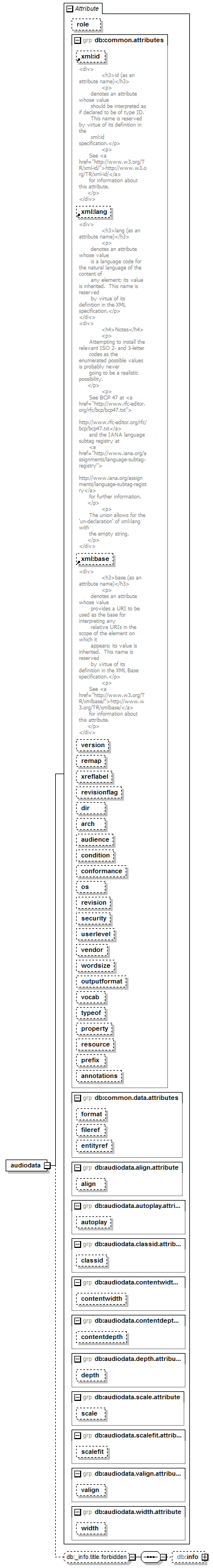

Model

db:info{0,1}
Children: db:info

Attributes

QName Type Fixed Default Use Inheritable Annotation
align restriction of xs:token optional
annotations optional
arch optional
audience optional
autoplay optional
classid optional
condition optional
conformance optional
contentdepth optional
contentwidth optional
depth optional
dir restriction of xs:token optional
entityref xs:ENTITY optional
fileref xs:anyURI optional
format optional
os optional
outputformat optional
prefix optional
property optional
remap optional
resource optional
revision optional
revisionflag restriction of xs:token optional
role optional
scale xs:positiveInteger optional
scalefit db:zeroorone.type optional
security optional
typeof optional
userlevel optional
valign restriction of xs:token optional
vendor optional
version optional
vocab xs:anyURI optional
width optional
wordsize optional
xml:base optional
xml:id xs:ID optional
xml:lang optional
xreflabel optional

Used By

Element db:audioobject

Source

<xs:element name="audiodata">
  <xs:complexType>
    <xs:group ref="db:_info.title.forbidden" minOccurs="0"/>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="db:common.attributes"/>
    <xs:attributeGroup ref="db:common.data.attributes"/>
    <xs:attributeGroup ref="db:audiodata.align.attribute"/>
    <xs:attributeGroup ref="db:audiodata.autoplay.attribute"/>
    <xs:attributeGroup ref="db:audiodata.classid.attribute"/>
    <xs:attributeGroup ref="db:audiodata.contentwidth.attribute"/>
    <xs:attributeGroup ref="db:audiodata.contentdepth.attribute"/>
    <xs:attributeGroup ref="db:audiodata.depth.attribute"/>
    <xs:attributeGroup ref="db:audiodata.scale.attribute"/>
    <xs:attributeGroup ref="db:audiodata.scalefit.attribute"/>
    <xs:attributeGroup ref="db:audiodata.valign.attribute"/>
    <xs:attributeGroup ref="db:audiodata.width.attribute"/>
  </xs:complexType>
</xs:element>

Sample
