db:areaset

Element Information

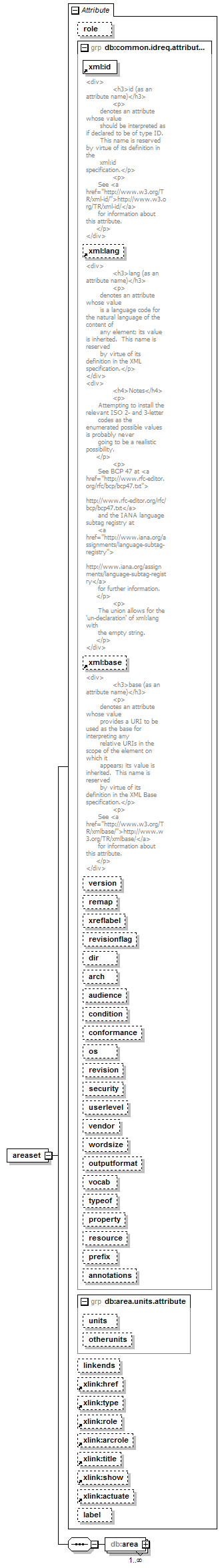

Model

db:area+
Children: db:area

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
condition optional
conformance optional
dir restriction of xs:token optional
label optional
linkends xs:IDREFS optional
os optional
otherunits xs:NMTOKEN optional
outputformat optional
prefix optional
property optional
remap optional
resource optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
typeof optional
units restriction of xs:token optional
userlevel optional
vendor optional
version optional
vocab xs:anyURI optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base optional
xml:id xs:ID required
xml:lang optional
xreflabel optional

Used By

Element db:areaspec

Source

<xs:element name="areaset">
  <xs:complexType>
    <xs:sequence>
      <!-- only different from global area in that xml:id is optional -->
      <xs:element name="area" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="db:alt" minOccurs="0"/>
          </xs:sequence>
          <xs:attribute name="role"/>
          <xs:attributeGroup ref="db:common.attributes"/>
          <xs:attributeGroup ref="db:area.units.attribute"/>
          <xs:attribute name="linkends" type="xs:IDREFS"/>
          <xs:attribute name="href" type="xs:anyURI"/>
          <xs:attribute ref="xlink:type"/>
          <xs:attribute ref="xlink:role"/>
          <xs:attribute ref="xlink:arcrole"/>
          <xs:attribute ref="xlink:title"/>
          <xs:attribute ref="xlink:show"/>
          <xs:attribute ref="xlink:actuate"/>
          <xs:attribute name="label"/>
          <xs:attribute name="coords"/>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="db:common.idreq.attributes"/>
    <xs:attributeGroup ref="db:area.units.attribute"/>
    <xs:attribute name="linkends" type="xs:IDREFS"/>
    <xs:attribute ref="xlink:href"/>
    <xs:attribute ref="xlink:type"/>
    <xs:attribute ref="xlink:role"/>
    <xs:attribute ref="xlink:arcrole"/>
    <xs:attribute ref="xlink:title"/>
    <xs:attribute ref="xlink:show"/>
    <xs:attribute ref="xlink:actuate"/>
    <xs:attribute name="label"/>
  </xs:complexType>
</xs:element>

Sample
