db:arc

Element Information

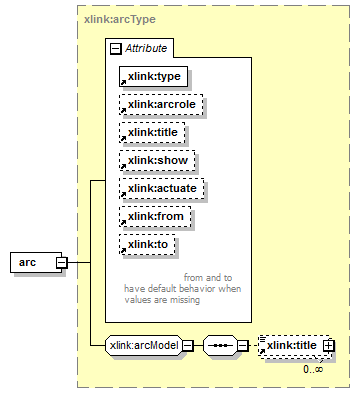

Model

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
condition optional
conformance optional
dir restriction of xs:token optional
label optional
os optional
outputformat optional
prefix optional
property optional
remap optional
resource optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
typeof optional
userlevel optional
vendor optional
version optional
vocab xs:anyURI optional
wordsize optional
xml:base optional
xml:id xs:ID optional
xml:lang optional
xreflabel optional

Used By

Element db:extendedlink

Source

<xs:element name="arc">
  <xs:complexType>
    <xs:complexContent>
      <xs:restriction base="xs:anyType">
        <xs:attribute name="role"/>
        <xs:attributeGroup ref="db:common.attributes"/>
        <xs:attributeGroup ref="db:coref.label.attribute"/>
      </xs:restriction>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

Sample
