docbook:inlinemediaobject

Element Information

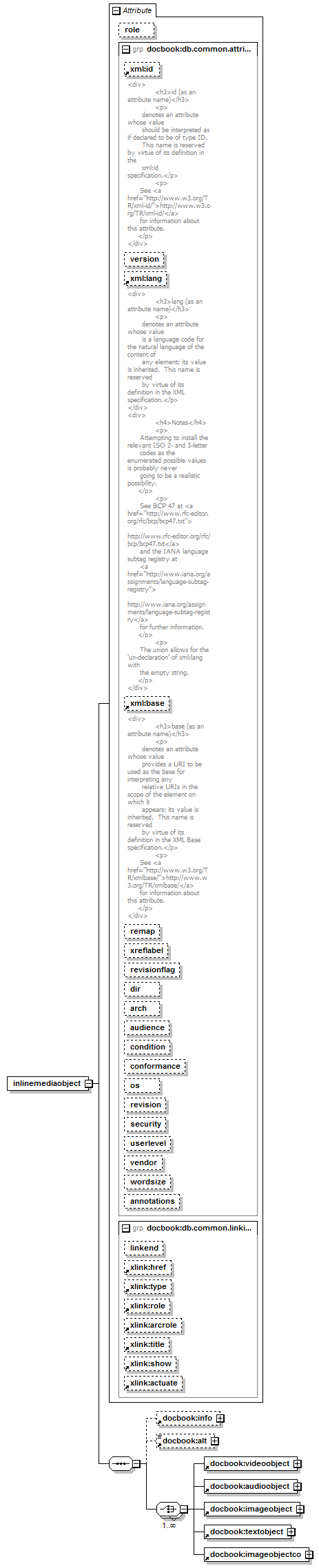

Model

docbook:info{0,1} , docbook:alt{0,1} , (docbook:videoobject | docbook:audioobject | docbook:imageobject | docbook:textobject | docbook:imageobjectco)
Children: docbook:alt, docbook:audioobject, docbook:imageobject, docbook:imageobjectco, docbook:info, docbook:textobject, docbook:videoobject

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
condition optional
conformance optional
dir restriction of xs:token optional
linkend xs:IDREF optional
os optional
remap optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
userlevel optional
vendor optional
version optional
wordsize optional
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType optional
xml:base xs:anyURI optional
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
xml:id xs:ID optional
See http://www.w3.org/TR/xml-id/ for
information about this attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
xreflabel optional

Used By

Elements docbook:abbrev, docbook:accel, docbook:acronym, docbook:address, docbook:alt, docbook:application, docbook:arg, docbook:artpagenums, docbook:attribution, docbook:authorinitials, docbook:bibliocoverage, docbook:biblioid, docbook:bibliomisc, docbook:bibliomset, docbook:bibliorelation, docbook:bibliosource, docbook:bridgehead, docbook:citation, docbook:citebiblioid, docbook:citetitle, docbook:city, docbook:classname, docbook:classsynopsisinfo, docbook:code, docbook:command, docbook:computeroutput, docbook:confdates, docbook:confnum, docbook:confsponsor, docbook:conftitle, docbook:constant, docbook:contractnum, docbook:contractsponsor, docbook:contrib, docbook:country, docbook:database, docbook:edition, docbook:email, docbook:emphasis, docbook:entry, docbook:envar, docbook:errorcode, docbook:errorname, docbook:errortext, docbook:errortype, docbook:exceptionname, docbook:fax, docbook:filename, docbook:firstname, docbook:firstterm, docbook:foreignphrase, docbook:funcdef, docbook:funcparams, docbook:funcsynopsisinfo, docbook:function, docbook:glosssee, docbook:glossseealso, docbook:glossterm, docbook:guibutton, docbook:guiicon, docbook:guilabel, docbook:guimenu, docbook:guimenuitem, docbook:guisubmenu, docbook:hardware, docbook:holder, docbook:honorific, docbook:initializer, docbook:inlineequation, docbook:interfacename, docbook:issuenum, docbook:jobtitle, docbook:keycap, docbook:keycode, docbook:keysym, docbook:label, docbook:lineage, docbook:lineannotation, docbook:link, docbook:literal, docbook:literallayout, docbook:manvolnum, docbook:markup, docbook:mathphrase, docbook:member, docbook:methodname, docbook:modifier, docbook:mousebutton, docbook:msgaud, docbook:msglevel, docbook:msgorig, docbook:olink, docbook:option, docbook:optional, docbook:orgdiv, docbook:orgname, docbook:otheraddr, docbook:othername, docbook:package, docbook:pagenums, docbook:para, docbook:paramdef, docbook:parameter, docbook:personname, docbook:phone, docbook:phrase, docbook:pob, docbook:postcode, docbook:primary, docbook:primaryie, docbook:productname, docbook:productnumber, docbook:programlisting, docbook:prompt, docbook:property, docbook:publishername, docbook:quote, docbook:refdescriptor, docbook:refentrytitle, docbook:refmiscinfo, docbook:refname, docbook:refpurpose, docbook:releaseinfo, docbook:remark, docbook:replaceable, docbook:returnvalue, docbook:revnumber, docbook:revremark, docbook:screen, docbook:secondary, docbook:secondaryie, docbook:see, docbook:seealso, docbook:seealsoie, docbook:seeie, docbook:seg, docbook:segtitle, docbook:seriesvolnums, docbook:shortaffil, docbook:simpara, docbook:state, docbook:street, docbook:subscript, docbook:subtitle, docbook:superscript, docbook:surname, docbook:symbol, docbook:synopsis, docbook:systemitem, docbook:tag, docbook:td, docbook:term, docbook:termdef, docbook:tertiary, docbook:tertiaryie, docbook:th, docbook:title, docbook:titleabbrev, docbook:tocentry, docbook:token, docbook:trademark, docbook:type, docbook:uri, docbook:userinput, docbook:varname, docbook:volumenum, docbook:wordasword, docbook:year

Source

<xs:element name="inlinemediaobject">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" ref="docbook:info"/>
      <xs:element minOccurs="0" ref="docbook:alt"/>
      <xs:choice maxOccurs="unbounded">
        <xs:element ref="docbook:videoobject"/>
        <xs:element ref="docbook:audioobject"/>
        <xs:element ref="docbook:imageobject"/>
        <xs:element ref="docbook:textobject"/>
        <xs:element ref="docbook:imageobjectco"/>
      </xs:choice>
    </xs:sequence>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="docbook:db.common.attributes"/>
    <xs:attributeGroup ref="docbook:db.common.linking.attributes"/>
  </xs:complexType>
</xs:element>

Sample
