docbook:imagedata

Element Information

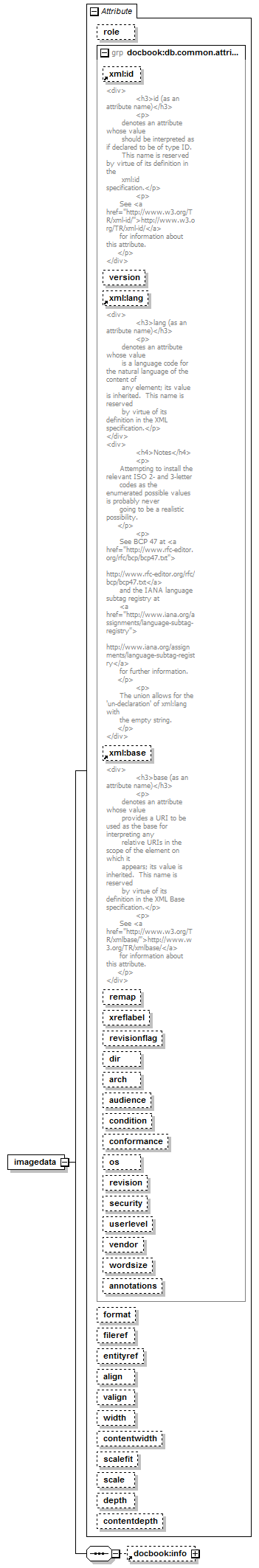

Model

docbook:info{0,1}
Children: docbook:info

Attributes

QName Type Fixed Default Use Inheritable Annotation
align restriction of xs:token optional
annotations optional
arch optional
audience optional
condition optional
conformance optional
contentdepth optional
contentwidth optional
depth optional
dir restriction of xs:token optional
entityref xs:ENTITY optional
fileref optional
format optional
os optional
remap optional
revision optional
revisionflag restriction of xs:token optional
role optional
scale xs:NMTOKEN optional
scalefit restriction of xs:token optional
security optional
userlevel optional
valign restriction of xs:token optional
vendor optional
version optional
width optional
wordsize optional
xml:base xs:anyURI optional
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
xml:id xs:ID optional
See http://www.w3.org/TR/xml-id/ for
information about this attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
xreflabel optional

Used By

Element docbook:imageobject

Source

<xs:element name="imagedata">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" ref="docbook:info"/>
    </xs:sequence>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="docbook:db.common.attributes"/>
    <xs:attribute name="format"/>
    <xs:attribute name="fileref"/>
    <xs:attribute name="entityref" type="xs:ENTITY"/>
    <xs:attribute name="align">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="center"/>
          <xs:enumeration value="char"/>
          <xs:enumeration value="justify"/>
          <xs:enumeration value="left"/>
          <xs:enumeration value="right"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="valign">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="bottom"/>
          <xs:enumeration value="middle"/>
          <xs:enumeration value="top"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="width"/>
    <xs:attribute name="contentwidth"/>
    <xs:attribute name="scalefit">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="0"/>
          <xs:enumeration value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="scale" type="xs:NMTOKEN"/>
    <xs:attribute name="depth"/>
    <xs:attribute name="contentdepth"/>
  </xs:complexType>
</xs:element>

Sample

< imageobject xmlns = "http://docbook.org/ns/docbook" role = "html" >

< imagedata fileref = "images/emacs.png" />

</ imageobject>
