docbook:audiodata

Element Information

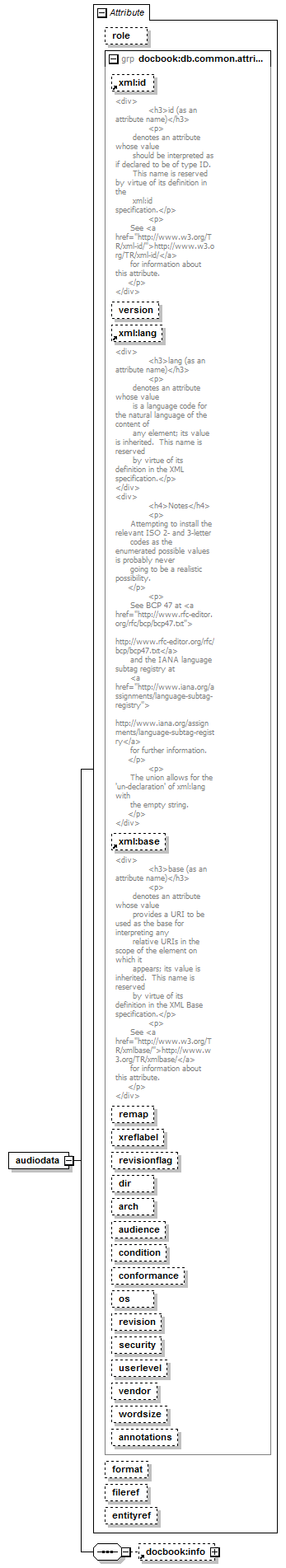

Model

docbook:info{0,1}
Children: docbook:info

Attributes

QName Type Fixed Default Use Inheritable Annotation
annotations optional
arch optional
audience optional
condition optional
conformance optional
dir restriction of xs:token optional
entityref xs:ENTITY optional
fileref optional
format optional
os optional
remap optional
revision optional
revisionflag restriction of xs:token optional
role optional
security optional
userlevel optional
vendor optional
version optional
wordsize optional
xml:base xs:anyURI optional
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
xml:id xs:ID optional
See http://www.w3.org/TR/xml-id/ for
information about this attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
xreflabel optional

Used By

Element docbook:audioobject

Source

<xs:element name="audiodata">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" ref="docbook:info"/>
    </xs:sequence>
    <xs:attribute name="role"/>
    <xs:attributeGroup ref="docbook:db.common.attributes"/>
    <xs:attribute name="format"/>
    <xs:attribute name="fileref"/>
    <xs:attribute name="entityref" type="xs:ENTITY"/>
  </xs:complexType>
</xs:element>

Sample
