Symbol

Fields describing the object's symbol, color, size and orientation when displayed in a graphical application

Element Information

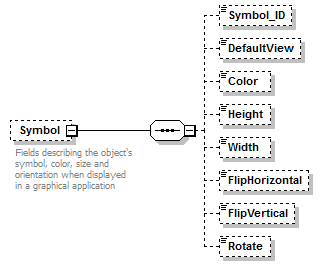

Model

Symbol_ID{0,1} , DefaultView{0,1} , Color{0,1} , Height{0,1} , Width{0,1} , FlipHorizontal{0,1} , FlipVertical{0,1} , Rotate{0,1}
Children: Color, DefaultView, FlipHorizontal, FlipVertical, Height, Rotate, Symbol_ID, Width

Source

<xs:element name="Symbol" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Fields describing the object's symbol, color, size and orientation when displayed in a graphical application</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Symbol_ID" minOccurs="0"/>
      <xs:element name="DefaultView" minOccurs="0"/>
      <xs:element name="Color" type="xs:string" minOccurs="0"/>
      <xs:element name="Height" type="xs:long" minOccurs="0"/>
      <xs:element name="Width" type="xs:long" minOccurs="0"/>
      <xs:element name="FlipHorizontal" type="xs:boolean" minOccurs="0"/>
      <xs:element name="FlipVertical" type="xs:boolean" minOccurs="0"/>
      <xs:element name="Rotate" type="xs:float" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Sample
