DiagML_Project
Element Information

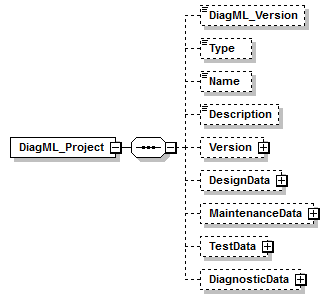

Model
Children: Description, DesignData, DiagML_Version, DiagnosticData, MaintenanceData, Name, TestData, Type, Version
Source
<xs:element name="DiagML_Project"> <xs:complexType> <xs:sequence> <xs:element name="DiagML_Version" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="2.0"/> <xs:enumeration value="2.1"/> <xs:enumeration value="2.2"/> <xs:enumeration value="2.3"/> <xs:enumeration value="2.4"/> <xs:enumeration value="2.5"/> <xs:enumeration value="2.6"/> <xs:enumeration value="2.7"/> <xs:enumeration value="2.8"/> <xs:enumeration value="2.9"/> <xs:enumeration value="2.10"/> <xs:enumeration value="2.11"/> <xs:enumeration value="2.12"/> <xs:enumeration value="2.13"/> <xs:enumeration value="2.14"/> <xs:enumeration value="2.15"/> <xs:enumeration value="2.16"/> <xs:enumeration value="2.17"/> <xs:enumeration value="2.18"/> <xs:enumeration value="2.19"/> <xs:enumeration value="2.20"/> <xs:enumeration value="2.21"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="Type" type="xs:string" minOccurs="0"/> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Description" type="xs:string" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="DesignData" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="UUT" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="UUT_ID"/> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Description" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Design_Comments" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Parent_Item_ID" minOccurs="0"/> <xs:element name="Parent_Object_ID" minOccurs="0"> <xs:annotation> <xs:documentation>for designs whose parent is a multi-object item</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Title" minOccurs="0"/> <xs:element name="Revision" minOccurs="0"/> <xs:element name="Status" minOccurs="0"/> <xs:element name="Contact" minOccurs="0"/> <xs:element name="Description" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="ColorLabels" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="Object_Labels"> <xs:complexType> <xs:sequence> <xs:element name="ColorLabel" type="ColorLabelType" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="IO_Labels"> <xs:complexType> <xs:sequence> <xs:element name="ColorLabel" type="ColorLabelType" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Net_Labels"> <xs:complexType> <xs:sequence> <xs:element name="ColorLabel" type="ColorLabelType" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Item" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Item_ID"/> <xs:element name="Item_Ext_ID" minOccurs="0"/> <xs:element name="Parent_ID" minOccurs="0"/> <xs:element name="Parent_Object_ID" minOccurs="0"> <xs:annotation> <xs:documentation>for Items whose parent is a multi-object item</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Context" type="xs:string" minOccurs="0"/> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="MultiLine_Name" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation>Included when carriage returns have been removed from the Name field</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Description" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="Item_Attribute" type="AttributeType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Distribution" type="Distribution_Type" minOccurs="0"/> <xs:element name="FailureRate" type="xs:double"/> <xs:element name="RelativeFailProb" type="xs:double" minOccurs="0"/> <xs:element name="Port" type="PortType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Appearance" type="ObjectAppearanceType" minOccurs="0"/> <xs:element name="Object" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Object_ID"/> <xs:element name="Object_Ext_ID" minOccurs="0"/> <xs:element name="Name" minOccurs="0"/> <xs:element name="MultiLine_Name" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation>Included when carriage returns have been removed from the Name field</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Description" minOccurs="0"/> <xs:element name="Object_Attribute" type="AttributeType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Distribution" type="Distribution_Type" minOccurs="0"/> <xs:element name="Port" type="PortType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Appearance" type="ObjectAppearanceType" minOccurs="0"/> <xs:element name="Function_ID" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="FailureMode_ID" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="IoObject" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="IoObject_ID"/> <xs:element name="IoObject_Ext_ID" minOccurs="0"/> <xs:element name="Parent_Item_ID" minOccurs="0"/> <xs:element name="Parent_Object_ID" minOccurs="0"> <xs:annotation> <xs:documentation>for Items whose parent is a multi-object item</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Context" type="xs:string" minOccurs="0"/> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="MultiLine_Name" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation>Included when carriage returns have been removed from the Name field</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Description" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="Port" type="PortType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Appearance" type="ObjectAppearanceType" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="AnnoObject" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="AnnoObject_ID"/> <xs:element name="AnnoObject_Ext_ID" minOccurs="0"/> <xs:element name="Parent_Item_ID" minOccurs="0"/> <xs:element name="Parent_Object_ID" minOccurs="0"> <xs:annotation> <xs:documentation>for Items whose parent is a multi-object item</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="MultiLine_Name" type="xs:string" minOccurs="0"> <xs:annotation> <xs:documentation>Included when carriage returns have been removed from the Name field</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="Appearance" minOccurs="0"> <xs:complexType> <xs:complexContent> <xs:extension base="ObjectAppearanceType"> <xs:attribute name="in_background" type="xs:boolean" use="optional" default="false"/> </xs:extension> </xs:complexContent> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Function" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Function_ID"/> <xs:element name="Function_Ext_ID" minOccurs="0"/> <xs:element name="Parent_ID" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Context" type="xs:string" minOccurs="0"/> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Item_ID" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="FailureMode_ID" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Function_Attribute" type="AttributeType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Distribution" type="Distribution_Type" minOccurs="0"/> <xs:element name="RelativeFailProb" type="xs:double" minOccurs="0"/> <xs:element name="Dependencies" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="DepPort_ID" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:attribute name="OutPort_IDs" type="xs:string"/> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="FailureMode" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="FailureMode_ID"/> <xs:element name="FailureMode_Ext_ID" minOccurs="0"/> <xs:element name="Context" type="xs:string" minOccurs="0"/> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Item_ID" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="Rate"> <xs:annotation> <xs:documentation>Adjusted pctg of failures to the related item that result from this failure mode</xs:documentation> </xs:annotation> </xs:element> <xs:element name="RawRate" minOccurs="0"> <xs:annotation> <xs:documentation>Defined pctg of failures to the related object that result from this failure mode</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Unit" type="xs:anySimpleType" default="percent"/> <xs:element name="FailureMode_Attribute" type="AttributeType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Distribution" type="Distribution_Type" minOccurs="0"/> <xs:element name="RelativeFailProb" type="xs:double" minOccurs="0"/> <xs:element name="EndItemSeverity" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="Severity_Label" type="xs:string" minOccurs="0"/> <xs:element name="Severity_Value"/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="ObjectState" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="ObjectState_ID"/> <xs:element name="ObjectState_Ext_ID" minOccurs="0"/> <xs:element name="Name"/> <xs:element name="Item_ID"/> <xs:element name="Object_ID" minOccurs="0"> <xs:annotation> <xs:documentation>Included only for multi-object Items</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Function_ID" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>List of functions that are active on this item when this object state is enabled</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="DesignState" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="DesignState_ID"/> <xs:element name="DesignState_Ext_ID" minOccurs="0"/> <xs:element name="Name"/> <xs:element name="Description" type="xs:string" minOccurs="0"/> <xs:element name="Context" type="xs:string" minOccurs="0"/> <xs:element name="EnabledObjectState_ID" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>List of object states that are enabled for this design state</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Net" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Net_ID"/> <xs:element name="Net_Ext_ID" minOccurs="0"/> <xs:element name="Parent_Item_ID" minOccurs="0"/> <xs:element name="Parent_Object_ID" minOccurs="0"> <xs:annotation> <xs:documentation>for Items whose parent is a multi-object item</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Appearance" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="SegmentWidth" type="xs:long"/> <xs:element name="BorderWidth" type="xs:long"/> <xs:element name="ArrowStyle"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="No Arrows"/> <xs:enumeration value="Filled Arrows"/> <xs:enumeration value="Hollow Arrows"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="JunctionStyle"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="No Junctions"/> <xs:enumeration value="Circle Junctions"/> <xs:enumeration value="Diamond Junctions"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="Color" type="xs:string"/> <xs:element name="Segment" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Point_1"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> <xs:element name="Point_2"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Junction" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Point_1"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> <xs:element name="Point_2"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> <xs:element name="Visible" type="xs:boolean" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Arrow" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Point_1"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> <xs:element name="Point_2"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> <xs:element name="Type"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="None"/> <xs:enumeration value="Left"/> <xs:enumeration value="Up"/> <xs:enumeration value="Right"/> <xs:enumeration value="Down"/> <xs:enumeration value="UpDown"/> <xs:enumeration value="LeftRight"/> </xs:restriction> </xs:simpleType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Label" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="LabelText" type="xs:string"/> <xs:element name="Point_1"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> <xs:element name="Point_2"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> <xs:element name="Justification" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Center"/> <xs:enumeration value="Left"/> <xs:enumeration value="Right"/> </xs:restriction> </xs:simpleType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Symbol" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Symbol_ID"/> <xs:element name="Symbol_Ext_ID" minOccurs="0"/> <xs:element name="View" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>View(s) associated with this symbol</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="ViewName" type="xs:string"> <xs:annotation> <xs:documentation>Brief label used to identify this view of the symbol</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Label" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Text annontation(s) that appear as part of this view of the symbol</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="LabelText" type="xs:string"/> <xs:element name="FontType" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Helvetica"/> <xs:enumeration value="TimesRoman"/> <xs:enumeration value="Courier"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="TextSize" type="xs:long" minOccurs="0"/> <xs:element name="TextStyle" type="xs:string" minOccurs="0"/> <xs:element name="Justification" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Left"/> <xs:enumeration value="Right"/> <xs:enumeration value="Center"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="X_Anchor" type="xs:long" minOccurs="0"/> <xs:element name="Y_Anchor" type="xs:long" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Vector" maxOccurs="unbounded"> <xs:complexType> <xs:choice> <xs:element name="Shape"> <xs:complexType> <xs:sequence> <xs:element name="ShapeType" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Line"/> <xs:enumeration value="Frame"/> <xs:enumeration value="Oval"/> <xs:enumeration value="Arc"/> <xs:enumeration value="Polygon"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="Fill_Type" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="None"/> <xs:enumeration value="FG"/> <xs:enumeration value="BG"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="Outline_Type" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="None"/> <xs:enumeration value="FG"/> <xs:enumeration value="BG"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="Coordinates" maxOccurs="unbounded"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Image"> <xs:complexType> <xs:sequence> <xs:element name="ImageType"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="EMF"/> <xs:enumeration value="WMF"/> <xs:enumeration value="JPG"/> <xs:enumeration value="GIF"/> <xs:enumeration value="PNG"/> <xs:enumeration value="BMP"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:choice> <xs:element name="Filename" type="xs:string"/> <xs:sequence> <xs:element name="ImageSize" type="xs:long"/> <xs:element name="ImageData_B64" type="xs:anyType"/> </xs:sequence> </xs:choice> <xs:sequence minOccurs="0"> <xs:element name="TL_Coordinate"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> <xs:element name="BR_Coordinate"> <xs:complexType> <xs:attribute name="X" type="xs:long" use="required"/> <xs:attribute name="Y" type="xs:long" use="required"/> </xs:complexType> </xs:element> </xs:sequence> </xs:sequence> </xs:complexType> </xs:element> </xs:choice> </xs:complexType> </xs:element> </xs:sequence> <xs:attribute name="ID" type="xs:long" use="optional"/> <xs:attribute name="Ext_ID" type="xs:long" use="optional"/> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="AttributeDefinition" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Attribute_ID"/> <xs:element name="Name" minOccurs="0"/> <xs:element name="Description" minOccurs="0"/> <xs:element name="EntityType" maxOccurs="unbounded"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Item"/> <xs:enumeration value="Function"/> <xs:enumeration value="FailureMode"/> <xs:enumeration value="TestProcedure"/> <xs:enumeration value="Test"/> <xs:enumeration value="TestGroup"/> </xs:restriction> </xs:simpleType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="DocumentView" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="DocumentView_ID"/> <xs:element name="ViewType" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:Name"> <xs:enumeration value="SVG"/> <xs:enumeration value="Bitmap"/> <xs:enumeration value="Other"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="ViewData" type="xs:hexBinary" minOccurs="0"/> <xs:element name="Application" type="xs:string" minOccurs="0"/> <xs:element name="DocumentName" type="xs:string" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="AggregateFailRate" type="xs:double" minOccurs="0"> <xs:annotation> <xs:documentation>AFR based only on elements within specified model scope. (Note: this should be omitted when multiple diagnostic procedures are based on different scopes.)</xs:documentation> </xs:annotation> </xs:element> <xs:element name="AggregateFailRate_Full" type="xs:double" minOccurs="0"> <xs:annotation> <xs:documentation>When at least one diagnostic procedure is constrained to a scope, then this contains the full (unconstrained) AFR</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="MaintenanceData" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="MaintenanceProcedure" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="MaintenanceProcedure_ID"/> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Description" type="xs:string" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="MaintenanceAction" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Type" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:Name"> <xs:enumeration value="adjust"/> <xs:enumeration value="replace"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="DesignItem" minOccurs="0"/> <xs:element name="IsolatedFailProb" type="xs:string" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="MaintProc_Attribute" type="AttributeType" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="TestData" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="TestProcedure" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="TestProcedure_ID"/> <xs:element name="TestProcedure_Ext_ID" minOccurs="0"/> <xs:element name="Context" type="xs:string" minOccurs="0"/> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Description" type="xs:string" minOccurs="0"/> <xs:element name="Type" type="xs:string" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="ExecutionEnvironment" minOccurs="0"/> <xs:element name="Locator" minOccurs="0"/> <xs:element name="Outcome" type="Outcome_Type" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Parameter" type="Parameter_Type" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Test" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Test_ID"/> <xs:element name="TestProcedure_ID" minOccurs="0"/> <xs:element name="Attribute" type="xs:string" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Location" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="IoObject_ID"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Coverage" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="TestProcedureOutcome_ID" type="xs:string" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Interpretation" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Type"> <xs:simpleType> <xs:restriction base="xs:Name"> <xs:enumeration value="Pass"/> <xs:enumeration value="Fail"/> </xs:restriction> </xs:simpleType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="TestFunction_ID" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="TestFailureMode_ID" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="StateSettings" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="EnabledStates" minOccurs="0"> <xs:annotation> <xs:documentation>States assumed to be enabled when this test is performed</xs:documentation> </xs:annotation> <xs:complexType> <xs:choice> <xs:choice> <xs:annotation> <xs:documentation>Enabled Object States</xs:documentation> </xs:annotation> <xs:element name="ObjectState_Abbr" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>When object states are not included in the exported Design Data, then the state abbreviations are exported for each test.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="ObjectState_ID" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>When object states are included in the exported Design Data, then only the state IDs are exported for each test.</xs:documentation> </xs:annotation> </xs:element> </xs:choice> <xs:choice> <xs:annotation> <xs:documentation>Enabled Design States</xs:documentation> </xs:annotation> <xs:element name="DesignState_ID" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>When design states are included in the exported Design Data, then only the state IDs are exported for each test.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="DesignState_Abbr" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>When design states are not included in the exported Design Data, then the state abbreviations are exported for each test.</xs:documentation> </xs:annotation> </xs:element> </xs:choice> </xs:choice> </xs:complexType> </xs:element> <xs:element name="DisabledStates" minOccurs="0"> <xs:annotation> <xs:documentation>States assumed to be disabled when this test is performed.</xs:documentation> </xs:annotation> <xs:complexType> <xs:choice> <xs:choice> <xs:annotation> <xs:documentation>Disabled Object States</xs:documentation> </xs:annotation> <xs:element name="ObjectState_ID" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>When object states are included in the exported Design Data, then only the state IDs are exported for each test.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="ObjectState_Abbr" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>When object states are not included in the exported Design Data, then the state abbreviations are exported for each test.</xs:documentation> </xs:annotation> </xs:element> </xs:choice> <xs:choice> <xs:annotation> <xs:documentation>Disabled Design States are not listed</xs:documentation> </xs:annotation> </xs:choice> </xs:choice> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Test_Attribute" type="AttributeType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="TestGroup_ID" minOccurs="0"/> <xs:element name="Appearance" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="Displayed_Location" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:choice> <xs:element name="IoObject_ID"> <xs:annotation> <xs:documentation>When the displayed test location is a Test Point</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Item_ID"> <xs:annotation> <xs:documentation>When the displayed test location is a covered item, rather than a test point (Inspection tests only)</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Object_ID"> <xs:annotation> <xs:documentation>When the displayed test location consists of part, but not all of a multi-object item (Inspection tests only)</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Net_ID"> <xs:annotation> <xs:documentation>When the displayed test location is a net (Probe tests only)</xs:documentation> </xs:annotation> </xs:element> </xs:choice> </xs:complexType> </xs:element> <xs:element name="Displayed_Input" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:choice> <xs:element name="IoObject_ID"> <xs:annotation> <xs:documentation>When a stimulus is applied at a particular IoObject for the given test</xs:documentation> </xs:annotation> </xs:element> </xs:choice> </xs:complexType> </xs:element> <xs:element name="Related_Net" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>List of nets to be displayed or highlighted for the test</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Net_ID" type="xs:string"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Object_View" type="Object_ViewType" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Prognosis" minOccurs="0"> <xs:annotation> <xs:documentation>Exists when Tests are used to represents prognostic measurements</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="HorizonTerm" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Horizon"/> <xs:element name="Confidence" minOccurs="0"/> <xs:element name="Correctness" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Prognosis" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Exist when prognositic measurements are to be listed separately from the Test elements</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Test_ID"/> <xs:element name="TestProcedure_ID" minOccurs="0"/> <xs:element name="Attribute" type="xs:string" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Location" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="IoObject_ID"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Coverage" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="TestProcedureOutcome_ID" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Interpretation" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Type"> <xs:simpleType> <xs:restriction base="xs:Name"> <xs:enumeration value="Pass"/> <xs:enumeration value="Fail"/> </xs:restriction> </xs:simpleType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="TestFunction_ID" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="TestFailureMode_ID" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Test_Attribute" type="AttributeType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="TestGroup_ID" minOccurs="0"/> <xs:element name="Appearance" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="Displayed_Location" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:choice> <xs:element name="IoObject_ID"> <xs:annotation> <xs:documentation>When the displayed test location is a Test Point</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Item_ID"> <xs:annotation> <xs:documentation>When the displayed test location is a covered item, rather than a test point (Inspection tests only)</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Object_ID"> <xs:annotation> <xs:documentation>When the displayed test location consists of part, but not all of a multi-object item (Inspection tests only)</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Net_ID"> <xs:annotation> <xs:documentation>When the displayed test location is a net (Probe tests only)</xs:documentation> </xs:annotation> </xs:element> </xs:choice> </xs:complexType> </xs:element> <xs:element name="Displayed_Input" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:choice> <xs:element name="IoObject_ID"> <xs:annotation> <xs:documentation>When a stimulus is applied at a particular IoObject for the given test</xs:documentation> </xs:annotation> </xs:element> </xs:choice> </xs:complexType> </xs:element> <xs:element name="Related_Net" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>List of nets to be displayed or highlighted for the test</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Net_ID" type="xs:string"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Object_View" type="Object_ViewType" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="HorizonTerm" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Horizon"/> <xs:element name="Confidence" minOccurs="0"/> <xs:element name="Correctness" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Interpretations" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="Interpretation" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Interpretation_ID"/> <xs:element name="DiagnosticAction"> <xs:complexType> <xs:choice> <xs:element name="ReduceSuspectSet"> <xs:complexType> <xs:sequence> <xs:element name="Modifier"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Remove"/> <xs:enumeration value="RemoveAllExcept"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="CoverageInterpretationType"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="ReplaceSuspectSet"/> <xs:element name="AdjustProbabilites"/> <xs:element name="DoNothing"/> </xs:choice> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="TestGroup" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="TestGroup_ID"/> <xs:element name="TestGroup_Ext_ID" minOccurs="0"> <xs:annotation> <xs:documentation>Exists when TestGroup maps to an external test set or grouping</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Context" type="xs:string" minOccurs="0"/> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Usage" minOccurs="0"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Fault Detection and Isolation"/> <xs:enumeration value="Fault Detection only"/> <xs:enumeration value="Fault Isolation only"/> <xs:enumeration value="Prognostics only"/> <xs:enumeration value="Template-based Fault Detection"/> <xs:enumeration value="Other"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="Parent_TestGroup_ID" minOccurs="0"/> <xs:element name="TestGroup_Attribute" type="AttributeType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Prerequisites" type="PrerequisiteType" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="DiagnosticData" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="DiagnosticStrategy" minOccurs="0" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Description" type="xs:string" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="StartDiagnosticProcedure_ID"/> <xs:element name="DiagnosticProcedure" maxOccurs="unbounded"> <xs:complexType> <xs:sequence> <xs:element name="DiagnosticProcedure_ID"/> <xs:element name="Type"> <xs:simpleType> <xs:restriction base="xs:Name"> <xs:enumeration value="FaultTree"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="Name" type="xs:string" minOccurs="0"/> <xs:element name="Description" type="xs:string" minOccurs="0"/> <xs:element name="Version" type="Version_Type" minOccurs="0"/> <xs:element name="Level" minOccurs="0"> <xs:annotation> <xs:documentation>Primary = the procedure is part of the diagnostics that are initially performed Secondary = the procedure represents diagnostics that are invoked (when needed) from another procedure (Primary or Secondary)</xs:documentation> </xs:annotation> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Primary"/> <xs:enumeration value="Secondary"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="Detection_Approach" minOccurs="0"> <xs:annotation> <xs:documentation>Sequence = the procedure is a single diagnostic sequence, beginning with the first test. Independent = each detection test is an entry point for a separate diagnostic sequence. Separate = the procedure contains the isolation sequence for a single detection test (starting with that test) Omitted = the procedure represents the isolation sequence for a single detection test (omitting that test and starting with the first isolation test)</xs:documentation> </xs:annotation> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Sequence"/> <xs:enumeration value="Independent"/> <xs:enumeration value="Separate"/> <xs:enumeration value="Omitted"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="DetectionTest_ID" minOccurs="0"> <xs:annotation> <xs:documentation>When Detection_Approach is set to Omitted, then the DetectionTest_ID contains the Test_ID of the omitted detection test.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="Isolation_Approach" minOccurs="0"> <xs:annotation> <xs:documentation>Multiple Failure = isolation inferences assume that multiple failed tests may be due to separate faults Common Cause = isolation inferences assume that multiple failed tests are due to a single fault</xs:documentation> </xs:annotation> <xs:simpleType> <xs:restriction base="xs:string"> <xs:enumeration value="Multiple Failure"/> <xs:enumeration value="Common Cause"/> </xs:restriction> </xs:simpleType> </xs:element> <xs:element name="StartDiagnosticStep_ID"/> <xs:element name="DiagnosticStep" type="DiagnosticStep_Type" maxOccurs="unbounded"/> <xs:element name="Outcome" type="Outcome_Type" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="DiagProc_Attribute" type="AttributeType" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Parameter" type="Parameter_Type" minOccurs="0" maxOccurs="unbounded"/> <xs:element name="Repair_Items" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="Repair_Item_ID" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Scope" minOccurs="0"> <xs:annotation> <xs:documentation>When missing, the scope is assumed to be the entire design</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element name="Name"/> <xs:element name="AggregateFailRate_InScope" minOccurs="0"> <xs:annotation> <xs:documentation>When multiple diagnostic procedures are constrained to different scopes, then this contains the AFR for the given procedure.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="ExcludedObject" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>Object(s) that are excluded from the scope of the diagnostic procedure, yet included in the Design Data</xs:documentation> </xs:annotation> <xs:complexType> <xs:attribute name="Item_ID" type="xs:string" use="required"/> <xs:attribute name="Object_ID" type="xs:string" use="optional"/> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Diagnostic_Statistics" minOccurs="0"> <xs:complexType> <xs:sequence> <xs:element name="Statistic" maxOccurs="unbounded"> <xs:complexType> <xs:attribute name="label" type="xs:string" use="required"/> <xs:attribute name="value" type="xs:string" use="required"/> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="DiagnosticReasoner" minOccurs="0" maxOccurs="unbounded"> <xs:complexType/> </xs:element> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element> |
