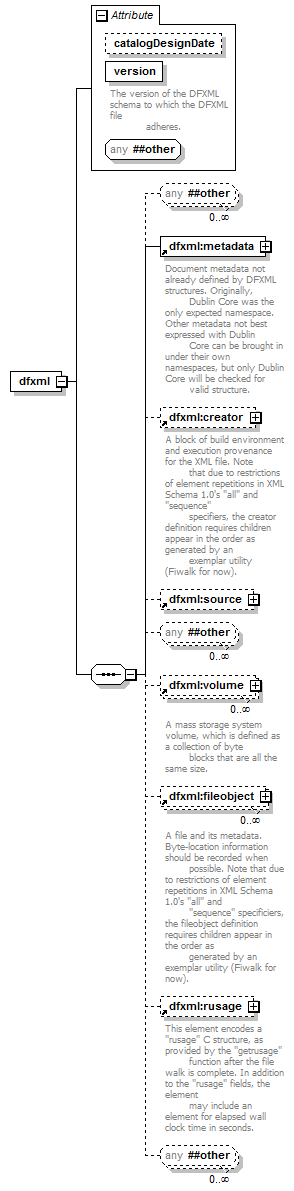

dfxml:dfxml

Element Information

Model

ANY element from ANY namespace OTHER than 'http://www.forensicswiki.org/wiki/Category:Digital_Forensics_XML' , dfxml:metadata , dfxml:creator{0,1} , dfxml:source{0,1} , ANY element from ANY namespace OTHER than 'http://www.forensicswiki.org/wiki/Category:Digital_Forensics_XML' , dfxml:volume* , dfxml:fileobject* , dfxml:rusage{0,1} , ANY element from ANY namespace OTHER than 'http://www.forensicswiki.org/wiki/Category:Digital_Forensics_XML'

Children: dfxml:creator, dfxml:fileobject, dfxml:metadata, dfxml:rusage, dfxml:source, dfxml:volume

Attributes

QName

Type

Fixed

Default

Use

Inheritable

Annotation

catalogDesignDate

xs:date

optional

version

xs:string

required

The version of the DFXML schema to which the DFXML file
adheres.

Wildcard: ANY attribute from ANY namespace OTHER than 'http://www.forensicswiki.org/wiki/Category:Digital_Forensics_XML'

Source

<xs:element name="dfxml">
  <xs:complexType>
    <xs:sequence>
      <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="dfxml:metadata" minOccurs="1" maxOccurs="1"/>
      <xs:element ref="dfxml:creator" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="dfxml:source" minOccurs="0" maxOccurs="1"/>
      <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="dfxml:volume" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="dfxml:fileobject" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="dfxml:rusage" minOccurs="0" maxOccurs="1"/>
      <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="catalogDesignDate" type="xs:date"/>
    <xs:attribute name="version" type="xs:string" use="required">
      <xs:annotation>
        <xs:documentation>The version of the DFXML schema to which the DFXML file adheres.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
