material

There must be at least one material element.

Element Information

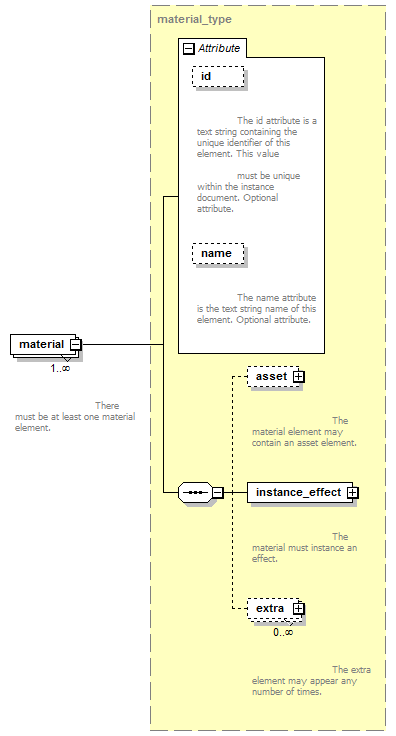

Model

asset{0,1} , instance_effect , extra*
Children: asset, extra, instance_effect

Attributes

QName Type Fixed Default Use Inheritable Annotation
id xs:ID optional
The id attribute is a text string containing the unique identifier of this element. This value
must be unique within the instance document. Optional attribute.
name xs:token optional
The name attribute is the text string name of this element. Optional attribute.

Source

<xs:element name="material" type="material_type" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>There must be at least one material element.</xs:documentation>
  </xs:annotation>
</xs:element>

Sample

< library_materials xmlns = "http://www.collada.org/2008/03/COLLADASchema" >

< material id = "Textured_Bump_E0_MP_MAT" name = "Textured_Bump_E0_MP_MAT" >

< instance_effect url = "#Textured_Bump_E0_MP_FX" >

< technique_hint platform = "PC-OGL" profile = "GLES2" ref = "Textured_Bump_E0_MP_TECH" />

< setparam ref = "fSpecularPower_E0_P0" >

< float>

25

</ float>

</ setparam>

< setparam ref = "fvAmbient_E0_P0" >

< float4>

0.368627 0.368421 0.368421 1

</ float4>

</ setparam>

< setparam ref = "fvDiffuse_E0_P0" >

< float4>

0.886275 0.885003 0.885003 1

</ float4>

</ setparam>

< setparam ref = "fvEyePosition_E0_P0" >
