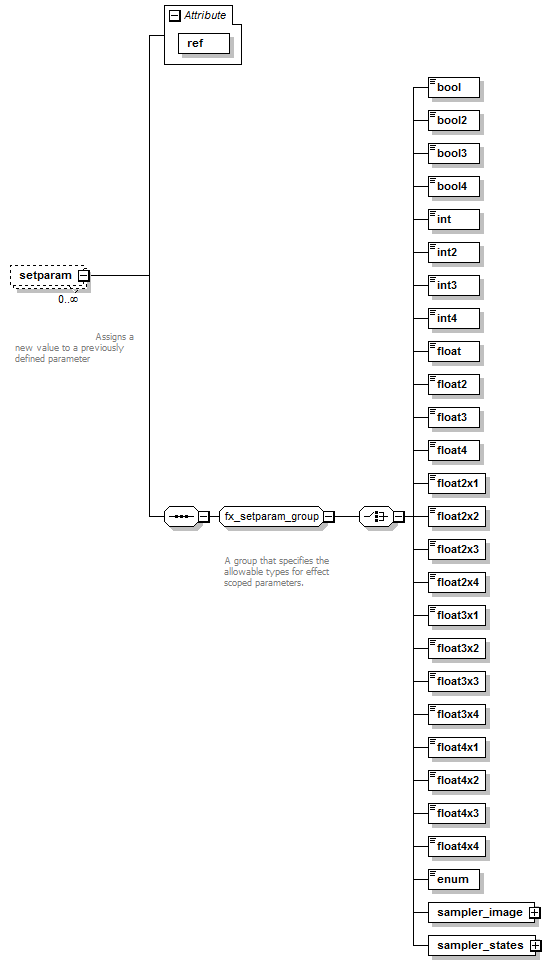

setparam

Assigns a new value to a previously defined parameter

Element Information

Model

(bool | bool2 | bool3 | bool4 | int | int2 | int3 | int4 | float | float2 | float3 | float4 | float2x1 | float2x2 | float2x3 | float2x4 | float3x1 | float3x2 | float3x3 | float3x4 | float4x1 | float4x2 | float4x3 | float4x4 | enum | sampler_image | sampler_states)
Children: bool, bool2, bool3, bool4, enum, float, float2, float2x1, float2x2, float2x3, float2x4, float3, float3x1, float3x2, float3x3, float3x4, float4, float4x1, float4x2, float4x3, float4x4, int, int2, int3, int4, sampler_image, sampler_states

Attributes

QName Type Fixed Default Use Inheritable Annotation
ref xs:token required

Source

<xs:element name="setparam" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Assigns a new value to a previously defined parameter</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:group ref="fx_setparam_group"/>
    </xs:sequence>
    <xs:attribute name="ref" type="xs:token" use="required"/>
  </xs:complexType>
</xs:element>

Sample

< instance_effect xmlns = "http://www.collada.org/2008/03/COLLADASchema" url = "#Textured_Bump_E0_MP_FX" >

< technique_hint platform = "PC-OGL" profile = "GLES2" ref = "Textured_Bump_E0_MP_TECH" />

< setparam ref = "fSpecularPower_E0_P0" >

< float>

25

</ float>

</ setparam>

< setparam ref = "fvAmbient_E0_P0" >

< float4>

0.368627 0.368421 0.368421 1

</ float4>

</ setparam>

< setparam ref = "fvDiffuse_E0_P0" >

< float4>

0.886275 0.885003 0.885003 1

</ float4>

</ setparam>

< setparam ref = "fvEyePosition_E0_P0" >

< float3>

0 0 100

</ float3>

</ setparam>

< setparam ref = "fvLightPosition_E0_P0" >

< float3>

-100 100 100

</ float3>

</ setparam>

< setparam ref = "fvSpecular_E0_P0" >

< float4>

0.490196 0.488722 0.488722 1

</ float4>

</ setparam>

</ instance_effect>
